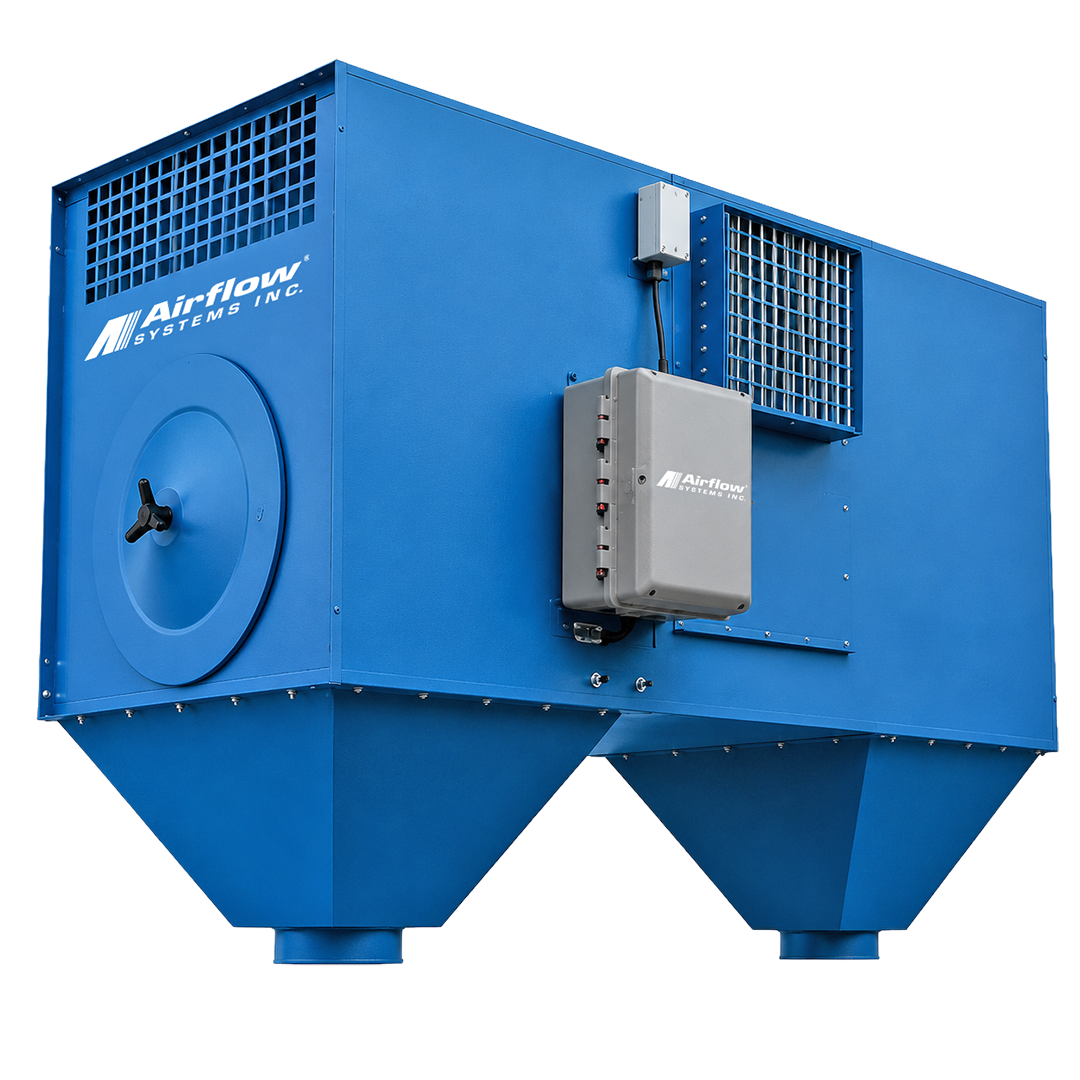

TC-4 Ambient Air Cleaner

Features & Benefits

• Class II Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace.

• Non-electrostatic Operation: High reliability, low maintenance.

• Four-way Adjustable Airfoil Grille: For precision direction of air back into facility.

• Maximum Air Flow Design for Light to Medium Applications: Improves operating efficiency.

• Prewired to Junction Box: For fast, easy installation.

• Cleanable Filters: Reduces filter replacement costs.

• Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.

• Auto-Clean Off-line Filter Cleaning: Automatically cleans filters when unit is shut off.

• Dual Hopper Design: Extends matainance cycles.

Options

• Pressure Gauge Kit: Indicates when filters require cleaning.

• Silencer: Reduces noise by 4 dBA.

• Cartridge Media: For specific applications.

• Mounting Brackets: Speeds installation, reduces maintenance expense.

Specifications

• Construction: 16 and 18 ga. steel cabinet, powder coated

• Blower Pkg (HP): 3.0, 60 Hz; 2.0, 50 Hz

• Noise Level (dBA): 82

• Electrical: 3.0 HP - 208-230/460/3/60, 7.9-7.3/3.6 amps, std.

• Nominal Air Flow (CFM): 2650

Dimensions

• Length: 77.00”

• Height: 45.00” (including the hoppers)

• Depth: 28.00”
