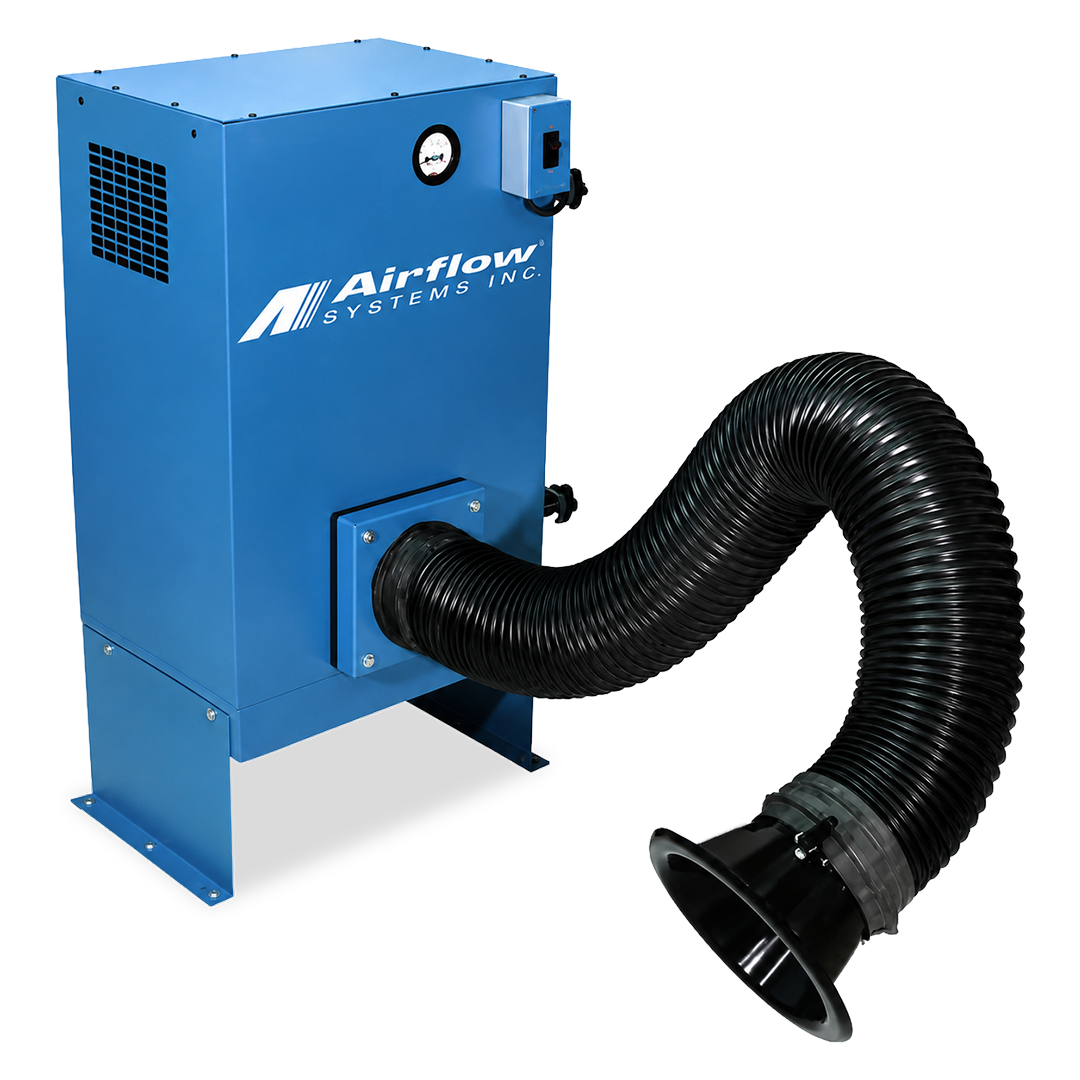

Mist-Pak
The Airflow Systems Mist-Pak is a compact, high-capacity mist collector designed for efficient source capture and simplified OSHA compliance. Its non-electrostatic design, Ultra-Seal® filter mounting, and direct-drive blower provide reliable, low-maintenance operation without belts or pulleys. Built from durable 18-gauge steel with an oil-resistant finish, the unit operates on standard 115V power, delivers up to 600 CFM airflow, and features quiet operation with a built-in silencer. Its vertical, space-saving design supports easy installation and effective drainage, while optional HEPA, DOP, and odor-control filters provide high-efficiency air filtration.
Features & Benefits
-
High capacity source capture: Simplifies OSHA compliance.
-
Standard 115V operation: Low-cost energy requirements.
-
Non-electrostatic operation: High reliability, low maintenance.
-
Ultra-Seal® filter mounting: Eliminates contaminant bypass of filters.
-
Vertical design with small footprint: Eases installation, aids draining.
-
Built-in silencer: For quiet operation.
-
Direct-drive blower: Greater reliabilty, no belts or pulleys to replace.
Options
-
Pressure Gauge Kit: Indicates when filters require cleaning.
-
Chevron® Mist Eliminator: Effectively removes moisture; improves filtration effectiveness and extends filter life.
-
DOP/Heavy Smoke Filter: Provides 95% efficiency.
-
Hanging Kit: For ceiling mount.
-
Slotted Hood.
-
Positioner Arm: Self-supported positioner arm in 5-ft. and 8-ft. lengths.
-
.75 HP High Pressure Motor: Raises air flow to 600 CFM.
Specifications
-
Construction: 18 ga. steel, cabinet coated with oil resistant paint
-
Blower Pkgs (HP): .50, .75
-
Noise Level (dBA): .50 HP - 65; .75 HP - 68
-
Electrical: .50 HP - 115V, std, 7.4 amps.; .75 HP - 115/1/60, 10 amps.
-
After-Filters: 99.97% HEPA, 95% DOP and odor modules.
-
Nominal Air Flow (CFM): 450
Dimensions
-
Width: 23.00”
-
Height: 39.00”
-
Depth: 14.00”
