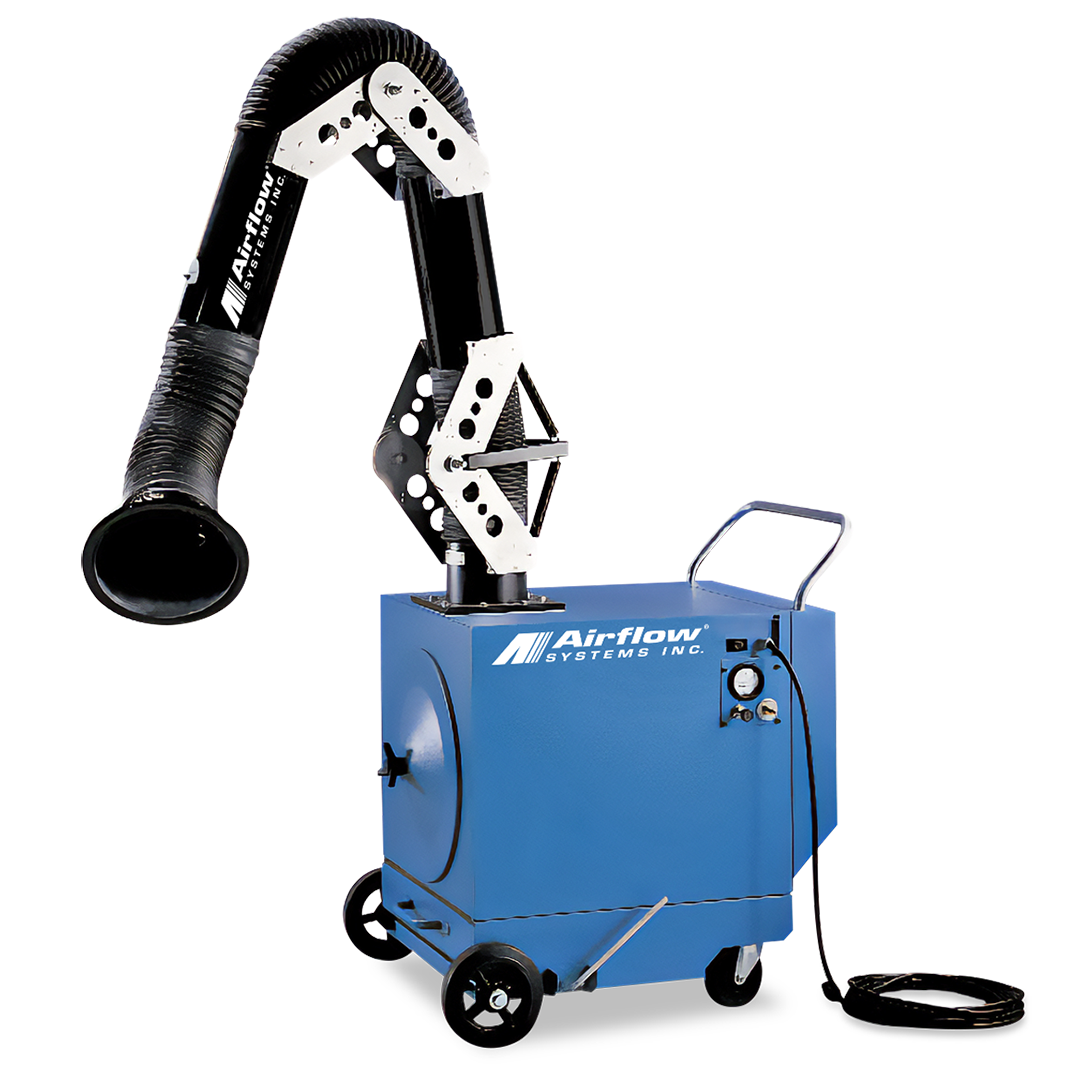

PCH-1
The PCH-1 portable dust collectors deliver powerful, point of-use filtration—up to 800 CFM—wherever it’s needed on the shop floor. These versatile units support a range of filter options, including cartridge filters, 99.97% HEPA, 95% DOP and odor modules, effectively capturing fumes, dust and smoke.
Features & Benefits
-
Complete, Self-contained Unit: Includes 7-ft. E-Z Arm® High Flow Extractor Arm, blower, and filter cartridge.
-
Direct-drive Blower: Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace.
-
Non-electrostatic Operation: High reliability, low maintenance.
-
Compressed filter mounting: Eliminates contaminant bypass of filters.
-
Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
-
Low Profile Cabinet: Low center of gravity for easy maneuverability and arm positioning.
-
Heavy-Duty, 25-ft. Power Cord: Maximizes system portability and positioning during operation.
Options
-
Pressure Gauge Kit: Indicates when filters require cleaning.
-
10-ft. E-Z Arm® High Flow Extractor Arm: Replaces standard 7-ft. E-Z Arm® for additional reach and peak system performance.
-
Custom Cartridge Media: Available for specific applications.
-
After-Filters: 99.97% HEPA, 95% DOP and odor modules.
-
65-Watt Halogen Light Kit: Improves worker visibility.
-
Dual 4 inch Arms: Provides large area, multi-task collection.
Specifications
-
Construction: 12/14/16 ga. welded steel, powder coated cabinet
-
Blower Pkgs (HP): 0.5, 1.0, 1.5
-
Noise Level (dBA): 65/70/74
-
Electrical: 0.5 HP - 115/1/60, 9.8 amps, opt.; 1.0 HP - 115/1/60, 12 amps, std.; 1.0 HP - 208-230/460/3/60, 3.6-3.3/1.7 amps, opt.; 1.5 HP - 115/230/1/60, 15/7.5 amps, opt.; 1.5 HP 208-230/460/3/60, 4.9-4.6/2.3 amps, opt.
-
Nominal Air Flow (CFM): 600, 1/2HP Opt. / 700, 1HP (Std) / 800, 1.5HP Opt.
Dimensions
-
Width: 24.00”
-
Height: 31.00”
-
Length: 37.00”
