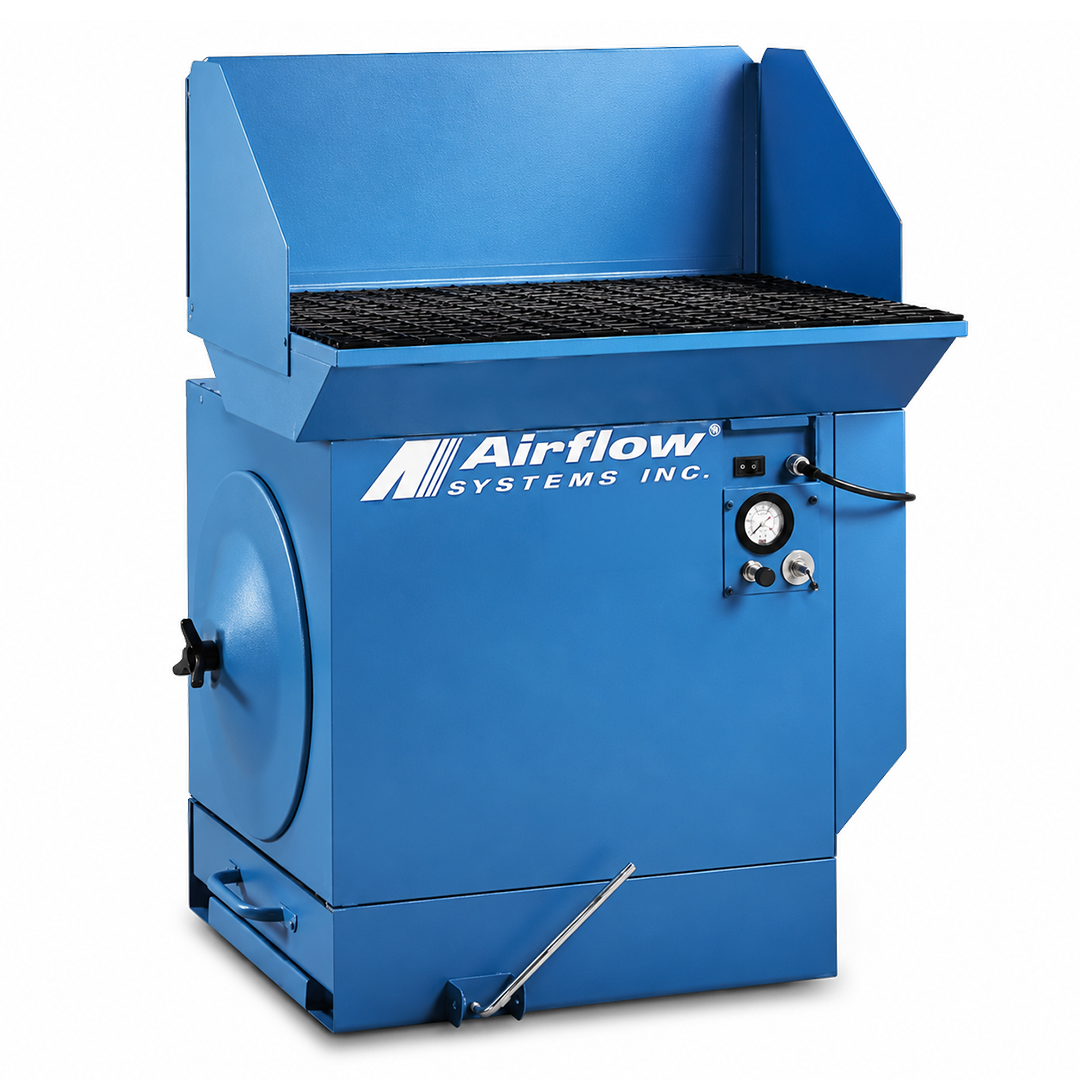

DTH-800
DTH-800 downdraft tables deliver efficient source capture for large, open industrial work surfaces by integrating the work area with particulate collection. The downdraft design pulls contaminants away from the worker’s breathing zone without restricting movement or productivity, with portable and stationary options available for grinding, sanding, and welding applications.
Features & Benefits
-
Integral collection area and work surface: Draws contaminants away from workers’ breathing zone without hindering movement; easily moved to any location in facility.
-
Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace.
-
Non-electrostatic operation: High reliability, low maintenance.
-
Compressed filter mounting: Eliminates contaminant bypass of filters.
-
Low profile cabinet Easy access speeds filter changeout and maintenance.
-
Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
-
Dust Drawer: Easily remove external dust drawer with positive lever lock.
Options
-
Pressure Gauge Kit: Indicates when filters require cleaning.
-
Regulator
-
Silencer: Reduces noise by up to 6 dBA.
-
Custom Cartridge Media: For specific applications.
-
After-Filters: 99.97% HEPA, 95%, and odor-control modules.
-
Side Shields: Improves collection efficiency; eliminates contaminant migration.
-
Enclosures and Lighting: Enhances work area; encourages productivity.
Specifications
-
Construction: 12/14/16 ga. welded steel, powder coated cabinet
-
Blower Pkgs (HP): 1.0, 1.5
-
Noise Level (dBA): 70/74
-
Electrical: 1 HP - 115/1/60, 12 amps, std.; 1.5 HP - 115/230/1/60, 13.2/6.6 amps, opt.
-
Nominal Air Flow (CFM): 800
Dimensions
-
Width: 34.38”
-
Height: 33.00”
-
Depth: 31.00”
-
Table Size: Size: 32.00" W x 24.50" D
