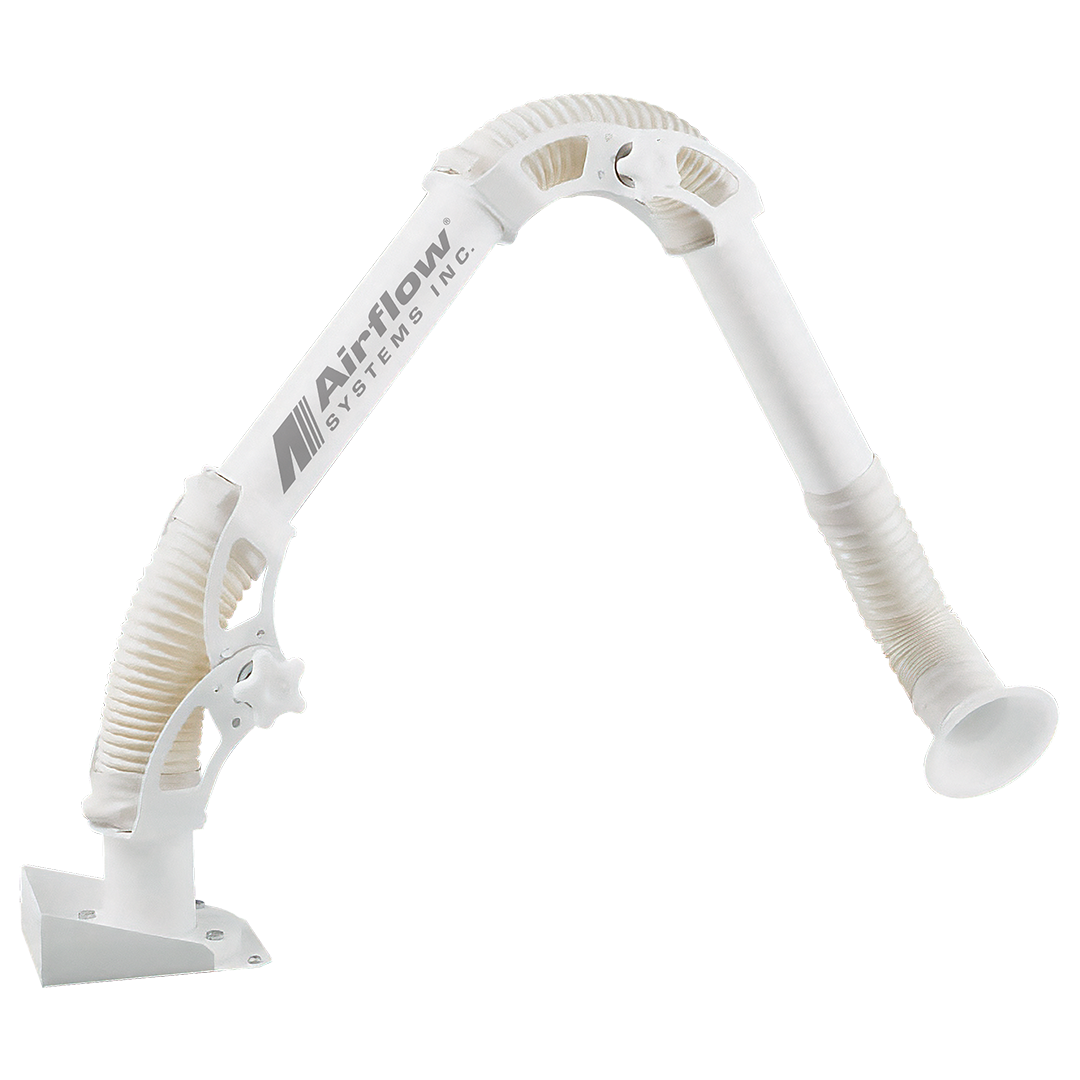

E-Z Arm 2.5
The E-Z Arm® 2.5 Extractor Arm provides precise positioning and high-volume contaminant extraction for applications such as laboratories, electronics assembly operations, and other light industrial settings where contaminants concentrate in close work areas. The E-Z Arm® 2.5 Extractor provides up to 300 CFM air flow and can be wall- or bench-mounted to optimize work space. A tough, white epoxy powder coat finish provides corrosion resistance and allows for easy wash down in process critical applications.
Features & Benefits
-
2.5-in. dia. arm in 4- or 6-foot lengths Provides for high-efficiency source-point collection for close work areas.
-
4.75-in. dia. flanged intake hood: Increases collection area and efficiency.
-
Strong, extruded aluminum tubing: Epoxy powder coated for for corrosion resistance; lightweight for one-hand positioning.
-
Triple-joint section design: Provides complete 360° range of movement, allows for positive positioning in any setup.
-
Heavy-duty stamped aluminum joints: External friction adjustments can handled contunued repositioning with losing position integrity.
-
Universal wall/table mounting bracket: Allows multiple mounting options to maximize operator productivity and space usage.
-
Flange-up or flange-down design: Allows table or wall mounting configuration.
Options
-
Filtration Units: HEPA, cartridge, and odor-control filter systems available based on application.
-
Blower Packages: Multiple options available to meet application-specific criteria.
Specifications
-
Construction: 18 ga. extruded aluminum seamless tube with spiral flex duct
-
Arm Lengths: 4 ft. (E-Z Arm® 2.5 2EO4) , 6 ft. (E-Z Arm® 2.5 2EO6)
-
Blower Pkgs (HP): consult factory
-
Nominal Air Flow (CFM): 75 to 300
-
Weight (lbs.):E-Z Arm® 2.5 2EO4 - 5 lbs., 2EO6 - 6 lbs.
