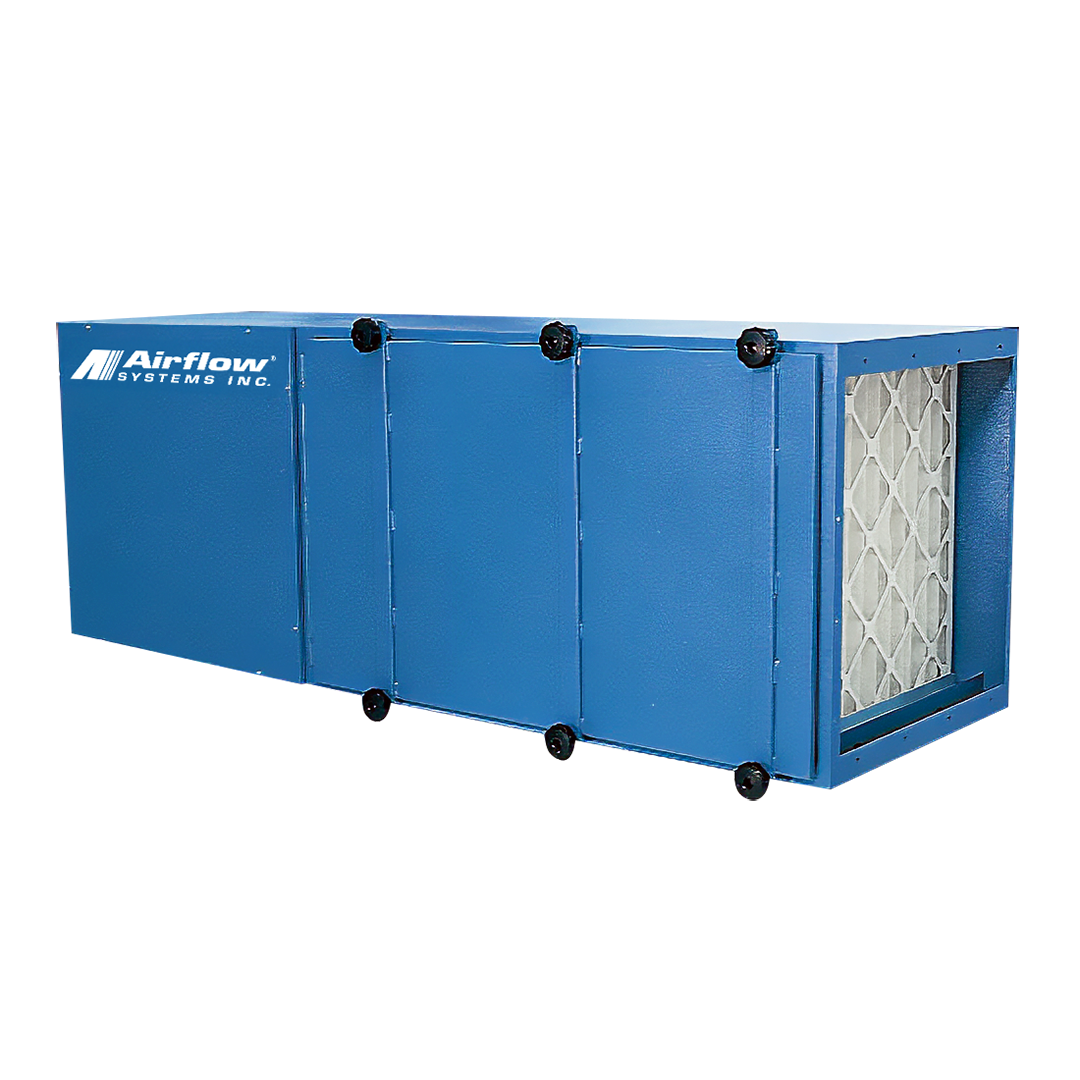

F90
The F90 high-efficiency air cleaner removes dust, smoke, mist, and other airborne pollutants in industrial, commercial, and educational settings. Its 2-, 3-, or 4-stage filtration system connects to ductwork or pickup hoses for effective source capture, with optional gas adsorption. When source capture isn’t practical, the F90 can operate as a free-hanging unit to clean ambient air. Washable pre-filters, a primary bag filter, and optional HEPA after-filters deliver up to 99.97% efficiency at noise levels as low as 75 dBA.
Features & Benefits
-
Capacities to 2800 CFM: Handles toughest industrial applications.
-
Belt Drive Blower: Standard
-
Non-electrostatic Operation: High reliability, low maintenance.
-
Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
-
High Efficiency Filter Media: provides maximum effectiveness; low air-to-cloth ratio extends cycles between filter changes; filter changes easily without tools.
-
Prewired to Junction Box: For fast, easy installation.
Options
-
Pressure Gauge Kit: Indicates when filters require cleaning.
-
Silencer: Reduces air flow noise for quieter operation.
-
Charcoal Adsorber Modules: Refillable modules control gases and odors.
-
HEPA After-Filter: provides 99.97% DOP efficiency.
-
Backwards Inclined Blower: For operating at higher pressures.
-
Inlet Plenum
Specifications
-
Construction: 16 ga. steel cabinet, powder coated;
-
Blower Pkg (HP): 1.5, std.; 3.0, opt.
-
Noise Level (dBA): 75 std./3 HP = 79
-
Electrical: 1.5 HP - 208-230/460/3/60, 5/2.5 amps.; 3.0 HP - 208-230/460/3/60, 8.0/4.0
-
Nominal Air Flow (CFM): 2800
Dimensions
-
Width: 21.00”
-
Height: 26.25”
-
Length: 66.00”
