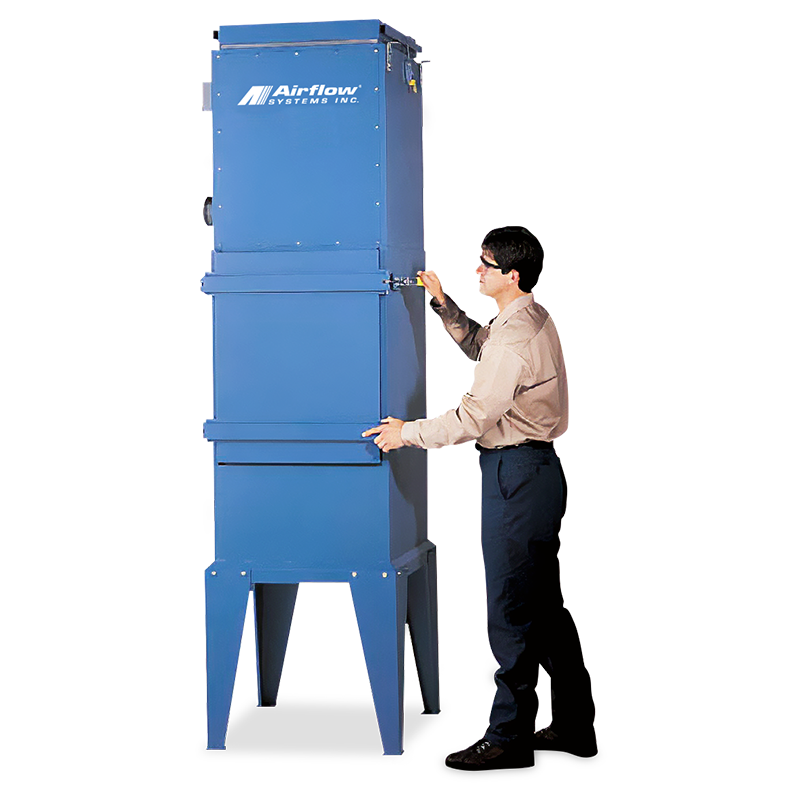

MistPak MP30 Mist Collector
The MP30 mist collector is designed for use in medium to heavy duty metalworking applications. It produces 2400 to 3000 CFM with 95% filtration efficiency. The MP30 features a 2” aluminum mesh pre-filter and (4) Mist-Plus® main filters for high-efficiency mist removal and extended service life, along with multiple inlet location options to easily facilitate collection from multiple machine tools. Its compact 5.4 square foot cabinet footprint requires minimal floor space, and the unit can be either hung or floor mounted.
Features & Benefits
-
Exclusive Mist-Plus® Containment Management System: Delivers over 95% filtration efficiency; reduces operating costs by extending maintenance cycles and filter life.
-
Welded steel cabinet: Eliminates contaminant escape common with bolt-on panel cabinets.
-
Baked-on powder coat finish: Resists harsh industrial environments.
-
Hinged front access filter door: Eases filter access; reduces filter maintenance and changeout time.
-
Sloped drain pan. Facilitates reclamation of captured oil mist.
-
Lever locking Filter Mounting: Eliminates contaminant bypass of filters.
-
Small Footprint: Compact cabinet requires minimal floor space; eases machine installation.
-
Continuous draining: Provides for longer filter life.
Options
-
Pressure Gauge Kit: Indicates when filters require cleaning.
-
Pre-Filters: 2-in. polyester pad.
-
After-Filters: 99.97% HEPA, 95% DOP and odor modules.
-
Drain Loop Kit: Simplifies collection and reclamation on captured oil mist while providing drain line air seal.
-
24-in. Floor Stand: Stabilizes floor-mounted units; eases unit and facility maintenance.
-
3 HP Blower Assembly: Reduces air flow to 2400 CFM.
-
2 HP Blower Assembly: Reduces air flow to 2100 CFM
Specifications
-
Construction: 16 ga. zinc coated welded steel, powder coated cabinet
-
Blower Pkgs (HP): 5.0, 3.0, 2.0
-
Noise Level (dBA); 78 dBA(5HP); 73 dBA(3HP); 69 dBA(2HP)
-
Electrical: 2.0 HP - 208-230/460/3/60, 6.6-5.2/2.6 amps, opt 5.0 HP - 208-230/460/575/3/60, 12.0/6.0 amps, std.; 3.0 HP - 208-230/460/575/3/60, 9.2-8.0/4.0 amps, opt.
-
Blower Pkgs (HP): 5.0, 3.0, 2.0
-
Noise Level (dBA); 78 dBA(5HP); 73 dBA(3HP); 69 dBA(2HP)
-
Nominal Air Flow (CFM): 3000
Dimensions
-
Width: 28.00”
-
Height: 76.00”
-
Depth: 29.00”
