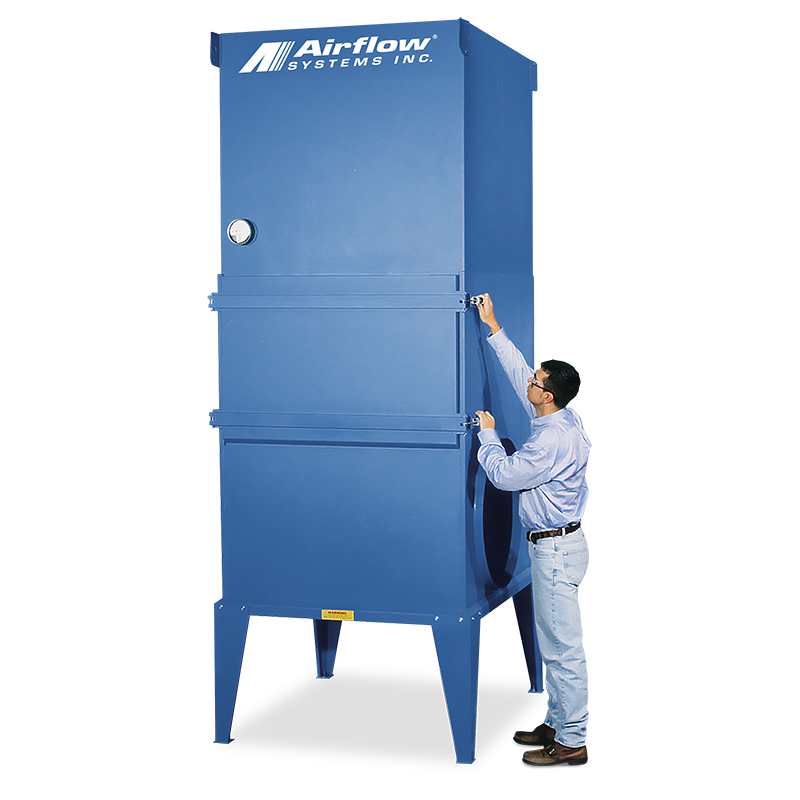

MistPak MP120 Mist Collector
The MP120 mist collector is designed for extremely heavy duty, multiple-machine tool metalworking applications. It produces 12,000 CFM with 95% filtration efficiency. The MP120 features 2” aluminum mesh pre-filters and (16) Mist-Plus® main filters, a sloped drain pan for faster reclamation of captured oil mist, and a 24” stand for floor-mounted installation.
Features & Benefits
-
Exclusive Mist-Plus® Containment Management System: Delivers over 95% filtration efficiency; reduces operating costs by extending maintenance cycles and filter life.
-
Welded steel cabinet: Eliminates contaminant escape common with bolt-onpanel cabinets.
-
Baked-on powder coat finish: Resists harsh industrial environments.
-
Front access filter door: Eases filter access; reduces filter maintenance and changeout time.
-
Sloped drain pan. Facilitates reclamation of captured oil mist.
-
Lever locking Filter Mounting: Eliminates contaminant bypass of filters.
-
24-in. Floor Stand: Stabilizes floor-mounted units; eases unit and facility maintenance.
-
Continuous draining: Provides for longer filter life.
-
Direct-drive blower: High static pressure blower, spark resistant; greater reliability, no belts or pulleys to replace.
Options
-
Pressure Gauge Kit: Indicates when filters require cleaning.
-
Pre-Filters: 2-in. polyester pad.
-
After-Filters: 99.97% HEPA, 95% DOP and odor modules.
-
Drain Loop Kit: Simplifies collection and reclamation on captured oil mist while providing drain line air seal.
-
Adsorption Modules: 12-in. v-bank refillable after-filters.
Specifications
-
Construction: 12 ga. zinc coated welded steel, powder coated cabinet
-
Blower Pkgs (HP): 20 HP
-
Noise Level (dBA): 79
-
Electrical: 20 HP - 230/460/3/60, 26/22 amps
-
Nominal Air Flow (CFM): 12,000
Dimensions
-
Width: 49.00”
-
Height: 131.00”
-
Depth: 53.00”
