F122



F122

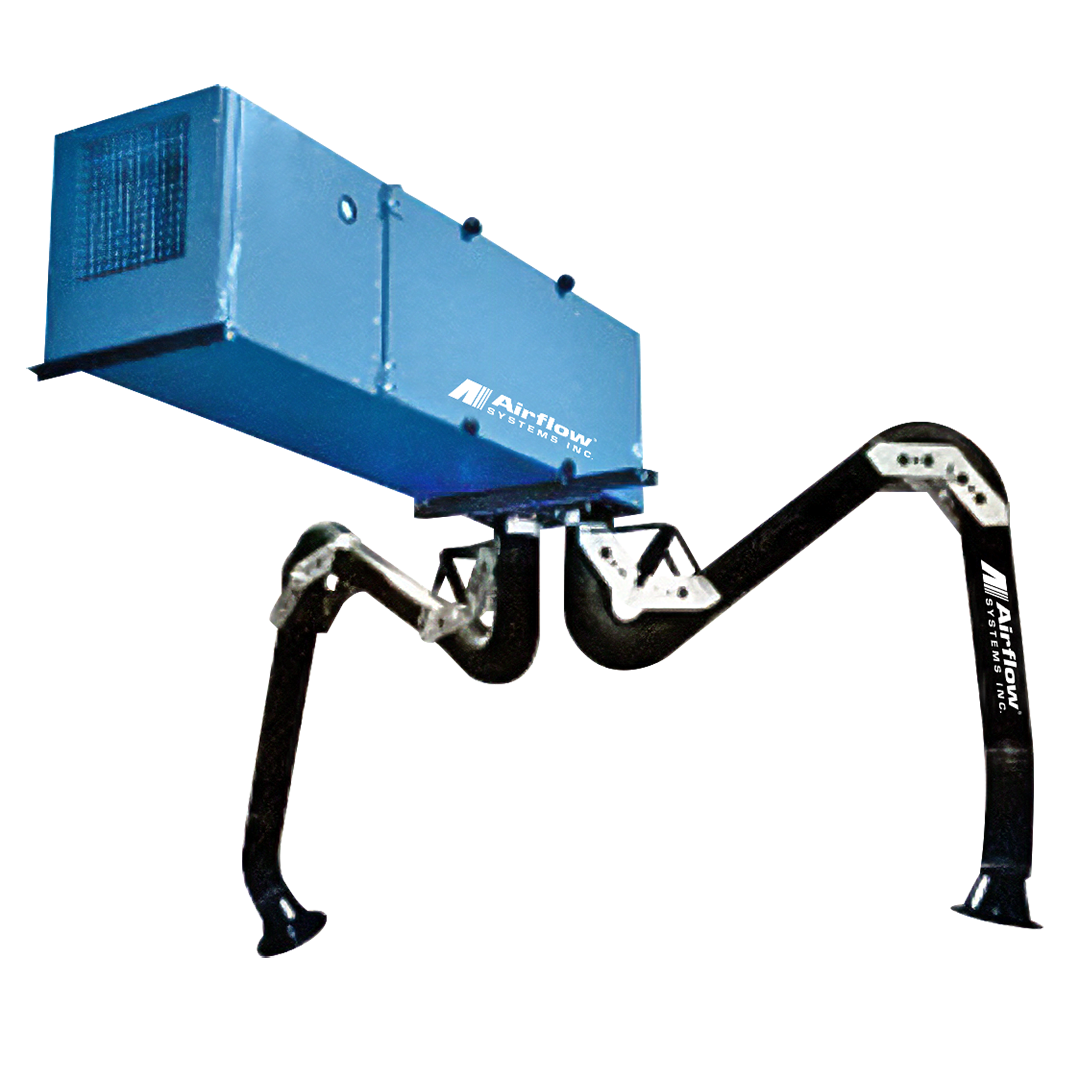

The Airflow Systems F-122 high-efficiency air cleaner with dual self-supported 10ft. long E-Z Arms® is capable of collecting dust, smoke, coolant mist, oil smoke, and other atmospheric pollutants at the source in industrial plants, shops, schools, and factories with high efficiency, 2,3, or 4 stage filtration proven on years of applications. Optional gas adsorption is available to remove gases as well as particulate matter. Washable pre-filters, a primary bag filter, and optional HEPA after-filters combine to provide 99.97% filtration efficiency at noise levels as low as 78 dBa.

Get Quote
specs

Features & Benefits

  • Dual 10-ft. E-Z Arm® High Flow Extractors: Increases collection efficiency over ambient systems.

  • Class II Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace.

  • Non-electrostatic operation: High reliability, low maintenance.

  • Ultra-Seal® filter mounting: Eliminates contaminant bypass of filters.

Options

  • Pressure Gauge Kit: Indicates when filters require cleaning.

  • Silencer: Reduces noise by 3 dBA.

  • 14-ft. E-Z Arm® High Flow Extractors: Replaces standard 10-ft. E-Z Arm® Extractors for peak system performance.

  • Available Filter Modules Chevron® mist collector, Disposable 4 prefilter, 99.97% efficiency HEPA safety filter, multi-filter gas adsorption module.

Specifications

  • Construction: 16 ga. steel cabinet, powder coated

  • Blower Pkg (HP): 3.0 HP - 208/230/460/3/60

  • Noise Level (dBA): 78

  • Electrical: 3.0 HP - 208/230/460/3/60; 3.0 HP - 190/380/3/50, 11.3/5.65 amps.

  • Nominal Air Flow (CFM): 2200

Dimensions

  • Width: 25.00”

  • Height: 26.25”

  • Length: 92.00”
