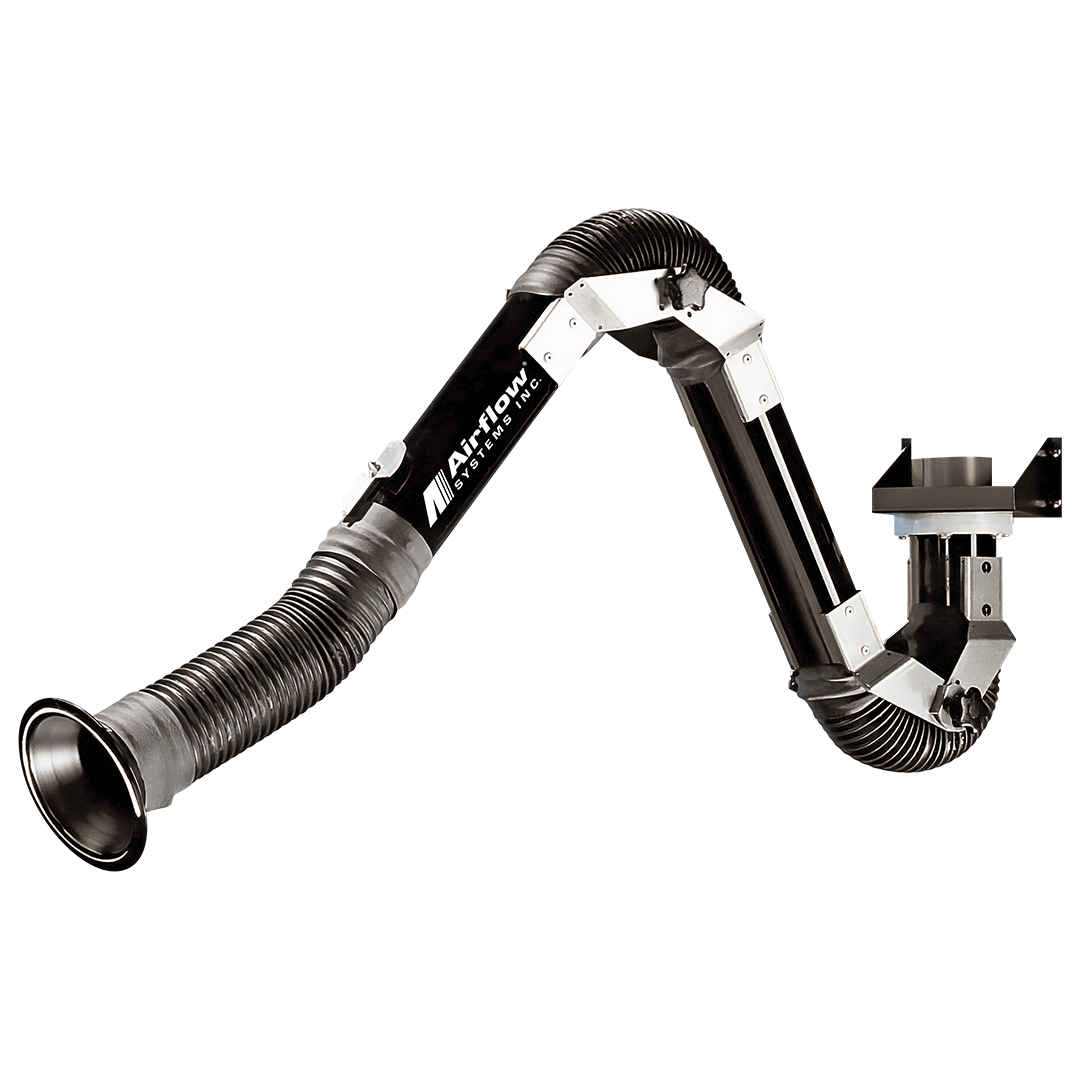

E-Z Arm II

Airflow Systems offers a full line of extraction arms for virtually any industrial source collection application. From the power of the heavy-duty E-Z Arm® High Flow Extractor to the collection performance of the E-Z Arm® II High Flow Extractor and the precision of the E-Z Arm® 2.5" Extractor Arm, each extraction arm unit is designed to meet demanding application-specific requirements. E-Z Arm® and E-Z Arm® II High Flow Extractor Arms are also available in stainless steel for process-critical applications where wash downs and corrosive environments are common.

Features & Benefits

• 4-in. dia. arm in 5- or 8-foot lengths: Provides for high-efficiency collection and
  maneuverability in tight spaces.

• Strong HDPE flat base joint: Easy to install; HDPE bearing material works to seal base without collars or fittings.

• Large 8-in. dia. inlet hood with 360° flange handle: Easier hood positioning than single-handle designs.

• Durable rounded duct constructed of 21-ga. aluminum: Withstands industrial use, yet lightweight for easy operation.

• Hi-Flow spiral wire-reinforced hose. Provides superior strength and resistance to sparks and embers.

Options

• 35 Watt Halogen Light Kit: Improves worker visibility and productivity.

• Damper: Shut off air flow when not in use.

• Silencer: Reduces air flow noise for quieter operation.

• Blowers: Several sizes available.

• Wall Brackets: Maximizes installation versatility.

• Adjustable Height Floor Stand: Maximum height of 120 inches adds installation versatility.

• Filtration Units: HEPA, cartridge, and odor-control filter systems available based on application.

• Boom Extensions: System includes aluminum boom arm, boom arm wall bracket, tube kit, and flex hose.

Specifications

• Construction: 21 ga. aluminum tube with spiral wire-reinforced Hi-Flow hose

• Blower Pkgs (HP): 0.75, 1.5, 3.0, 5.0, 7.5

• Nominal Air Flow (CFM): 200 to 600

• Weight (lbs.): E-Z Arm® II 4E05 - 9 lbs.; E-Z Arm® II 4E08 - 11 lbs.
