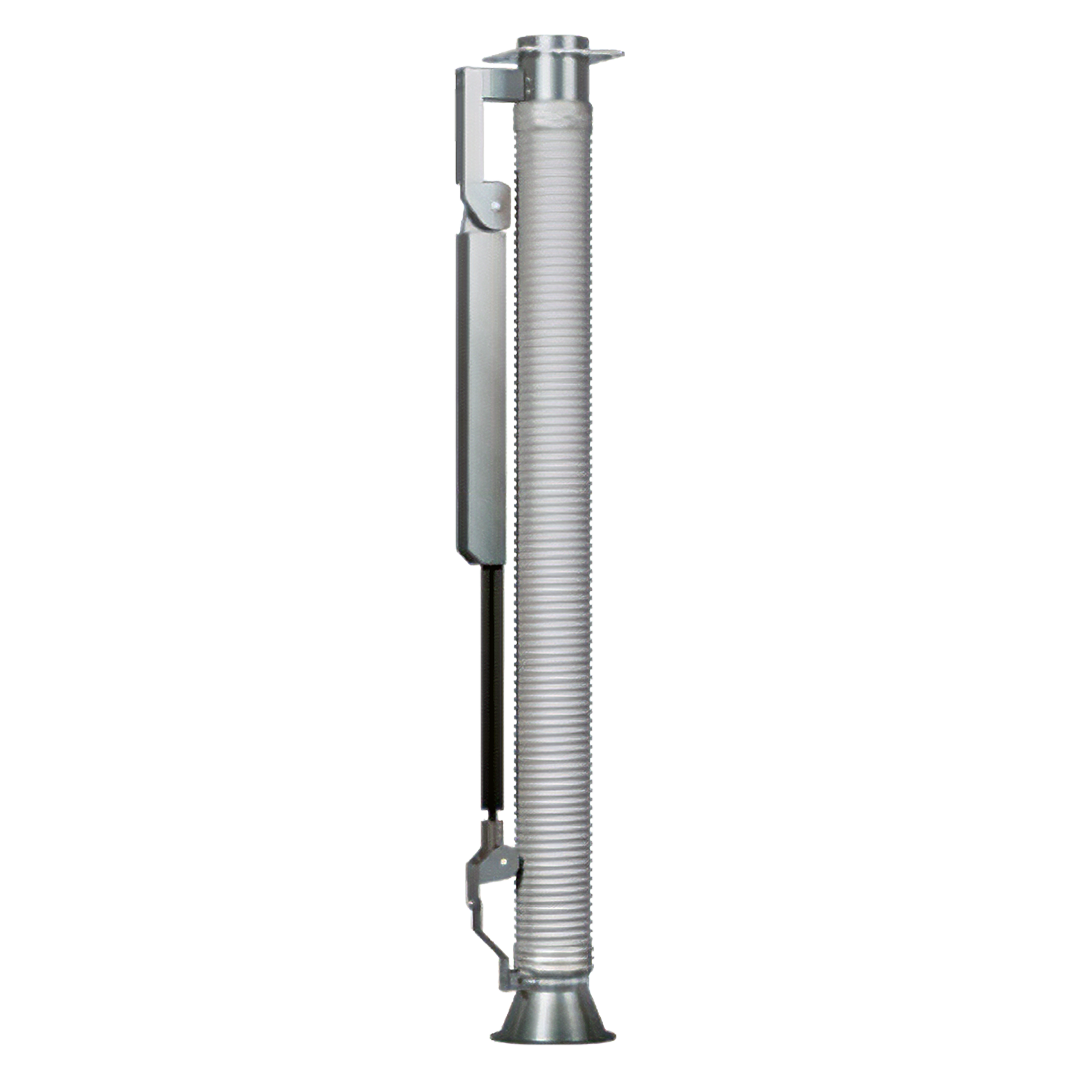

Stainless Steel Telescoping Collection Arm
The Stainless Steel Telescoping Arms are designed for process-critical applications such as food and pharmaceutical processing. Stainless steel construction allows easy washdowns while eliminating chipping and corrosion. The external multi-joint, externally supported design maximizes positioning and delivers smoother, more efficient airflow.
Features & Benefits
-
Telescoping Adjustment: Add up to 40% more arm reach and collection area when arm is fully extended. Simplify storage or close-area collection when arm is retracted.
-
Type 316 Stainless Steel Construction: Meets FDA, USDA, and NSF regulatory guidelines. Excellent resistance to chemicals solvents, and other corrosive materials.
-
Flex Hose: Durable, spiral-wire reinforced materials resist degradation.
-
10 inch Diameter Inlet Hood with 360° Flange Handle: Large, spun stainless steel capture hood optimizes collection efficiency. Full circumference handle eases user positioning of the arm.
-
360° Collection Area: Complete base joint rotation ensures efficient collection within a 360° area from the drop. Arm lift reaches 70° from the down position.
-
Versatile Installation: Universal wall- or duct-mount bracket easily installs to existing filtration unit, boom arm, or ductwork.
Options
-
Adjustable Air Flow Damper: Increases operating efficiency; regulate air flow levels and blower usage based on application-specific need.
-
White Hose, Hood, and Mounting Bracket: UL-rated hose and coordinated components work to enhance facility cleanliness and appearance in non-corrosive environments.
-
Static-free Hose: Reduce possible static shock of personnel and work pieces; speed maintenance, minimize particulate retention to the hose.
-
Light Kit: 35 watt, 115 volt halogen light kit improves worker visibility. Hood-mounted on-off switch eases access and operation.
-
Intake Guard: Protect ducting and the blower unit from over-sized debris, such as rags and plastic sheeting that could hinder the efficient operation of the system.
-
Exhaust Blower Units: Multiple blower units are available, from .75 HP up to 7.5 HP, depending on the application. Consult your representative for recommendations.
Specifications
-
Construction: Type 316 stainless steel tubes and components
-
Arm Lengths: 3 ft. (4 ft. extended), 3.5 ft. (5 ft. extended), 4.5 ft. (7 ft. extended).
-
Tube Diameters: 4" and 6"
-
Blower Packages (HP): .75, 1.5, 3.0, 5.0, 7.5
-
Nominal Air Flow: 450 to 850 CFM
-
Weight: 4TS5-316 - 14 lbs., 4TS6-316 - 16 lbs., 4TS7-316 - 18 lbs., 6TS5-316 - 14 lbs., 6TS6-316 - 16 lbs., 6TS7-316 - 18 lbs.
