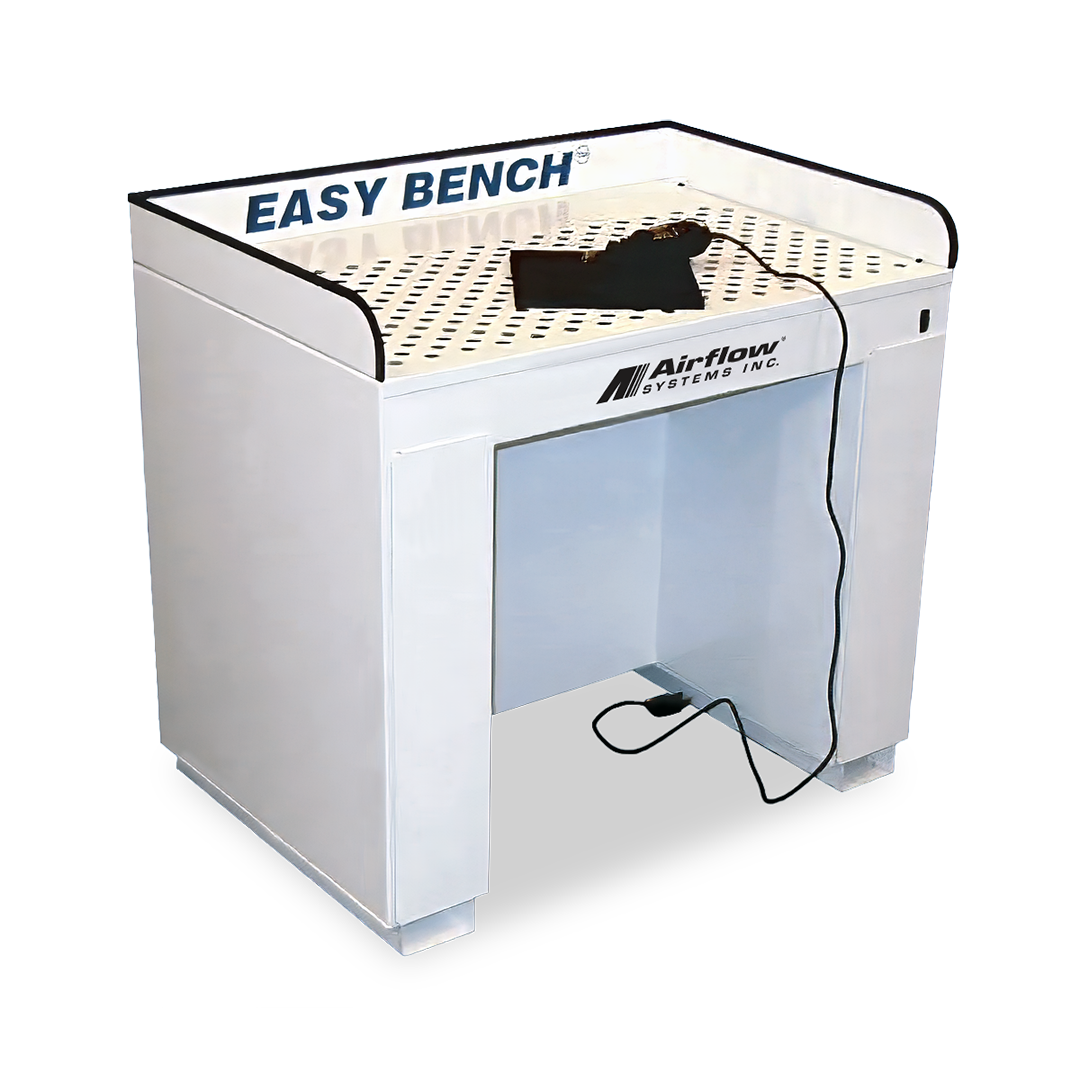

Easy Bench Downdraft Table

Features & Benefits

• Maximum Comfort: Designed ergonomically with standard desk height and full leg room to reduce operator strain and fatigue and optimize productivity and efficiency.

• Streamlined Construction for Ease of Use: Hinged top simply lifts up for access to the catch-tray which traps any larger particles or small tools that may fall through the holes. Seamless integration of back-splash guard on three sides means no crevices to trap dirt, making cleaning easy.

• Direct-Drive, High-Flow Blower: The Airflow Systems exclusive high-tech reverse-mounted motor/impeller is the secret to the strong airflow, quiet operation, and compact design of the Easy Bench.

• Cost-Effective, Low-Maintenance Operation: Two standard 24" x 24" x 4" panel filters allow for low filter velocity and high dust holding capacity.

• Easy-Access Filters: Filters slide in and out from the front, with easy-seal magnetic covers.

Options

• Height Modification: 28" and 32" available.

• One-Inch Ball Casters

• Soft Mat Cover: Made of interlocking tile with 1/4" openings.

• Odor Adsorption Filter

• Backsplash Extension: Clear Acrylic to 16".

• Easy Lift-Out Parts Catch-Tray: Made of high-impact white styrene.

Specifications

• Downdraft Velocity: 250 to 1100 fpm.

• Construction: 14/16 ga. welded steel, powder-coated white cabinet.

• Weight: 174 lbs.

• Noise Level (dBA): 65.

• Motor/Blower: All-aluminum BCC (backward curve centrifugal) motor rated UL & CSA.

• Electrical: 115/1/60, 185 watts.

• Filters: (2) 24" x 24" x 4" standard efficiency MERV 11; optional efficiency MERV 13, MERV 14, HEPA

• Nominal Air Flow (CFM): 800

Dimensions

• Width: 36.00"

• Height to Worksurface: 30.00"

• Height to Top of Backsplash: 33.50"

• Depth: 24"

• Work Surface: 24" x 36"

• Leg Space: Height, 26"; Width, 24"; Depth, 14"
