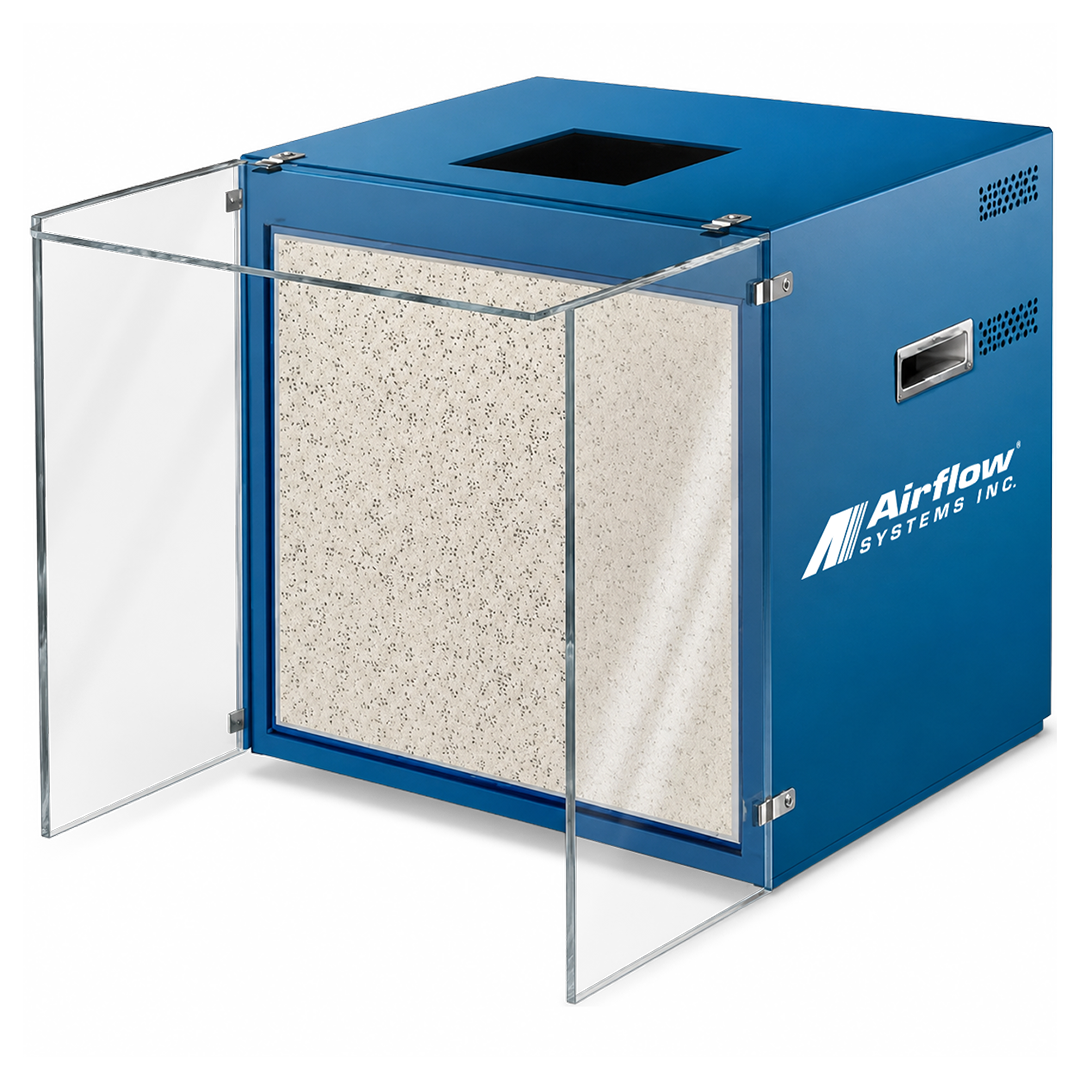

Fume Booth
The Airflow Systems Fume Booth is a compact, portable, and self-contained solution for effective fume and particulate control with no installation required. It plugs into any standard 115V outlet and is ready to use in minutes, making it ideal for flexible workspaces. Its 3-stage high-efficiency filtration system captures up to 98% of airborne contaminants to help maintain a clean, safe environment, while hinged, removable acrylic side and top shields provide easy access for maintenance and filter changes without sacrificing visibility. Durable and user-friendly, it delivers reliable performance without the complexity of traditional ventilation systems.
Features & Benefits
-
Portable, self-contained unit: No installation required, easy to set up and use anywhere.
-
High efficiency 3-stage filtration: Provides up to 98% filtration efficiency.
-
Hinged, removable top and side shields with built-in side handles: Easy access for cleaning and filter changeout.
-
Acrylic top and side shields: Enhances worker visibility.
-
Plug-in operation with any 115V outlet: Can be used anywhere, no special wiring required; operates with simple on-off switch.
Options
-
HEPA Main Filter: 99.97% DOP efficiency.
-
Charcoal Adsorption Module: 6-in. refillable v-bank module.
-
Extended Side Shields: Extends width to 30 in.
Specifications
-
Construction: 18 ga. steel cabinet, 2-part chemical- and oil-resistant finish, removable acrylic top and side shields
-
Blower Pkgs (HP): 1/10 HP
-
Noise Level (dBA): 51-54
-
Electrical: 1/10 HP - 115V, 2.7 amps, std.
-
Nominal Air Flow (CFM): 230 ; 170 w/ HEAP or V-Bank
Dimensions
-
Width: 22.00”
-
Height: 24.00”
-
Depth: 15.00”
