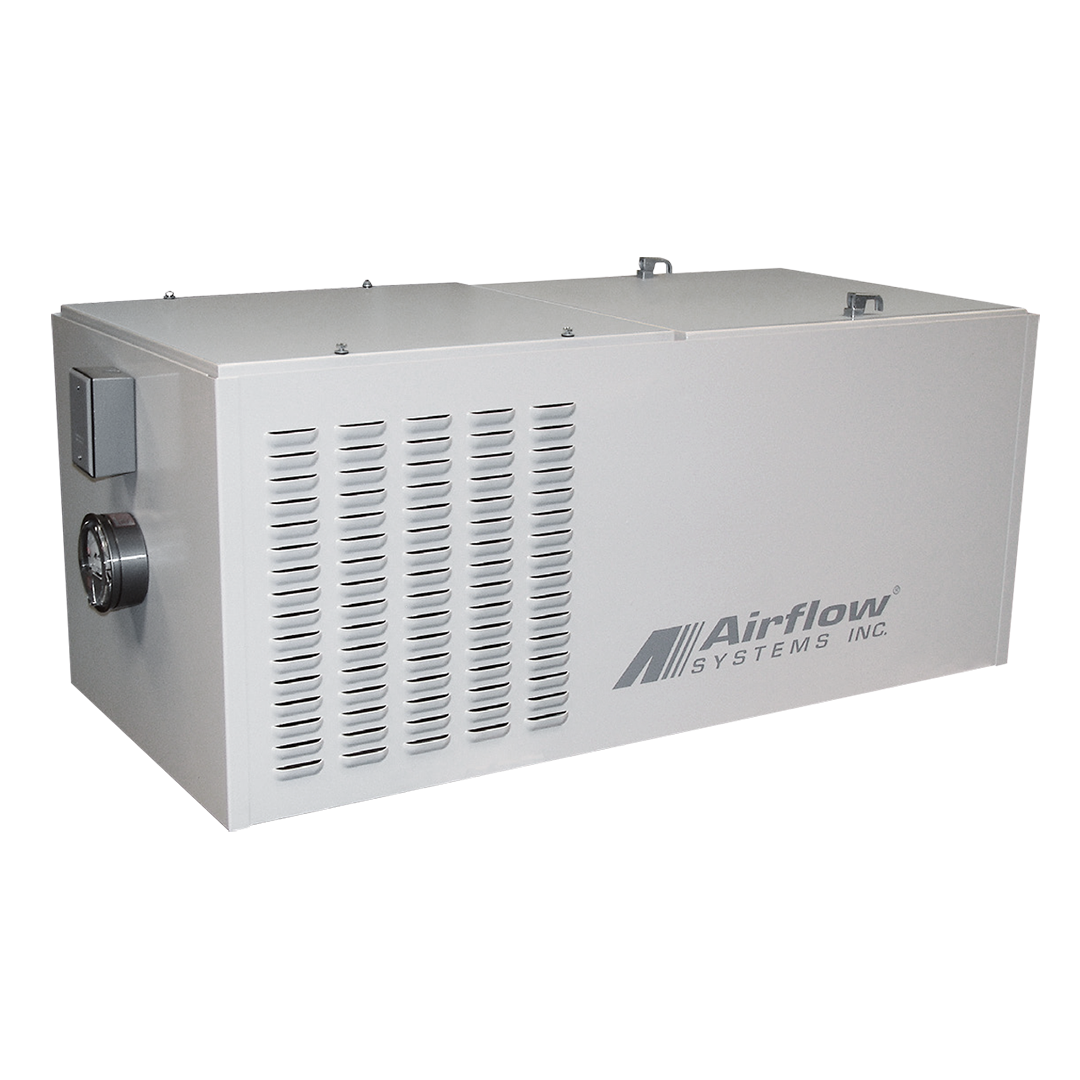

Features & Benefits

• 95% Collection Efficiency at 1 to 4 Microns: Designed specifically for oil mist, the Airflow Systems, Inc.® MistPlus® II filter provides up to 95% filtration efficiency of 1 to 4 micron mist droplets. The proprietary, V-shaped filter design aids in drainage of collected mist; extending filter life.

• MERV14 After-filter Collection Efficiency: (2) MERV 14 rated after-filters provides an additional contaminant barrier. Collection efficiency is increased; filter life is extended.

• Sealed Cabinet Construction: 18 gauge steel, seam-sealed cabinet eliminates contaminant escape common with stitch-welded or bolt-on panel designs.

• Ultra-Seal Filter Placement System: Ensures quick and accurate filter replacement; eliminates contami- nant bypass of filters, reduces equipment and facility maintenance.


• Low-profile Cabinet Design: Horizontal orientation allows for installation directly above the machine tool—even in low ceiling applications; saves floor space, simplifies filter access.

• Superior Liquid Drainage: 10-inch bottom inlet and 2-inch deep sump enable high-volume, 24-hour, 7-day operation; no manual handling of liquids.

• Extended Filter Life, Reduced Maintenance: MistPlus® II filter design reduces dirt loading and filter maintenance; extending filter life up to two years.

• Direct-Drive Blower: Energy-efficient; superior air flow and higher static pressure operation; no belts or pulleys to replace, acoustic-lined cabinet.

Options

• Pressure Gauge Kit: Monitors air pressure at inlet for reduced static pressure; indicates need for filter cleaning, ensures optimum energy efficiency.

• High-efficiency and Application-specific After Filters: Including: 99.97% HEPA or MERV14 rated, rigied-style, washable cartridge filters.

• Source Capture Plenum: Add high-efficiency source-point collection or ducting; plenum attachment simplifies connectivity of ducts or collection arms.


• Drain Loop Kit: Simplifies collection and reclamation of captured oil mist while providing drain line air seal.

• Side Panel Inlet: Adaptable to virtually any facility or equipment configuration, side panel inlets simplify system installation and start up.

Specifications

• Construction: 16/18 gauge, zinc-coated, welded steel cabinet; powder coated finish.

• Blower Packages (HP): 1.0 std., .50 opt.

• Noise Level (dBA): 77.5

• Electrical:

  1.0 HP - 115/1/60, 12 amps, std.

  1.0 HP - 208-230/460/3/60, 3.7-3.6/1.8 amps, opt.

  .50 HP - 115/1/60, 7.2 amps, opt.

  .50 HP - 208-230/460/3/60, 2.7-2.6/1.3 amps, opt.

• Nominal Air Flow (CFM): 1,000/500

• Weight (lbs.): 191
