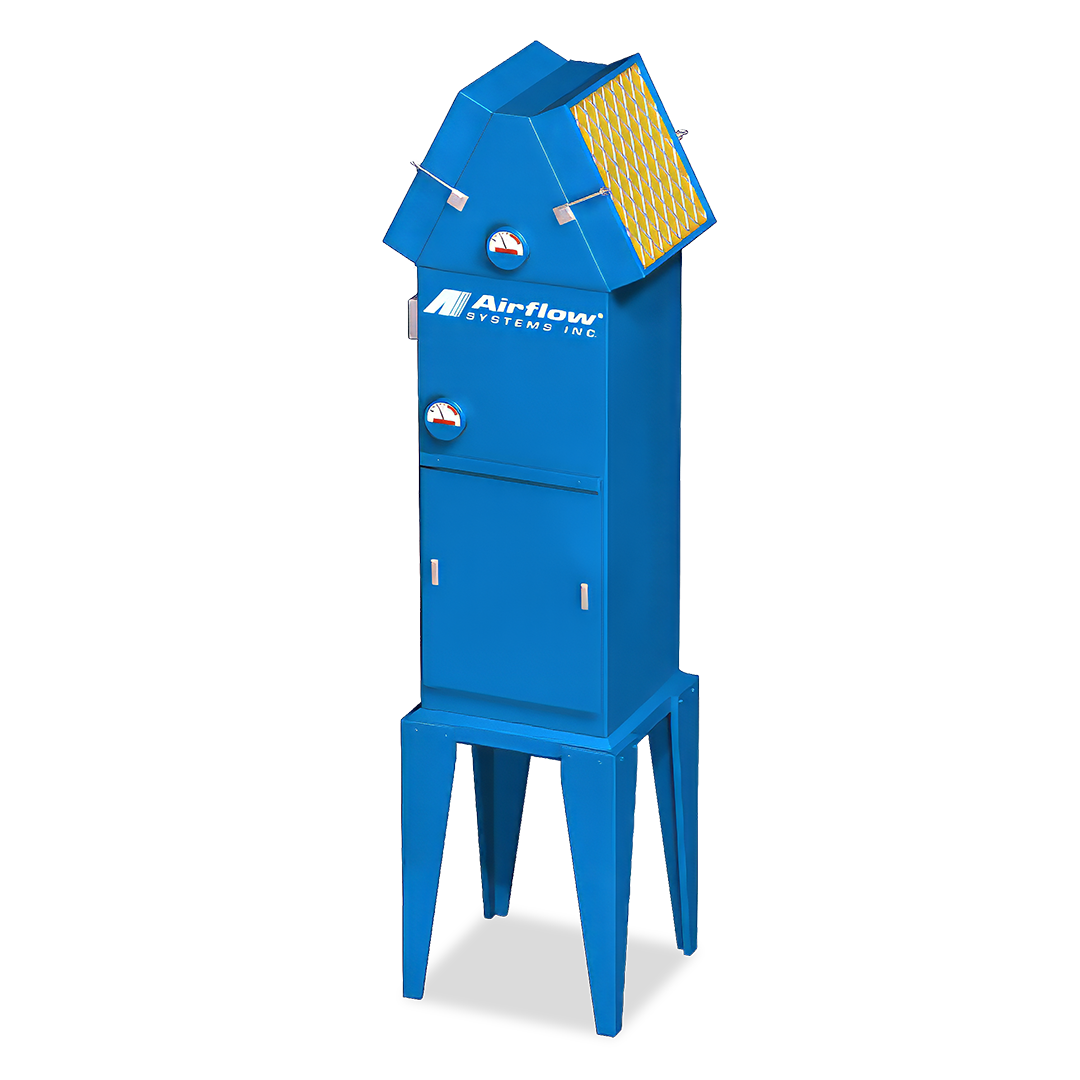

Pro 1 Oil Mist Collector
The Pro 1 mist collector is a compact, high-efficiency filtration system designed for reliable mist containment in demanding industrial environments. It features the MistPlus® II Containment Management System with 99.97% ultra-high-efficiency filtration, a washable primary filter that can last up to two years, and an extended-life HEPA after-filter for superior air cleaning. Its welded steel cabinet and lever-locking filter design help prevent contaminant bypass, while continuous draining and a pressure gauge kit reduce maintenance and extend filter life. The small footprint also makes installation easy where floor space is limited.
Features & Benefits
-
Exclusive MistPlus®II Containment Management System: 99.97% ultra-high efficiency filtration. Washable filter reduces maintenance costs, extends filter life up to 2 years.
-
Welded Steel Cabinet: Eliminates contaminant escape common with bolt-on panel cabinets.
-
IEC-Approved Electrical Starter: 3-phase only
-
Lever locking Filter Mounting: Eliminates contaminant bypass of filters.
-
Pressure Gauge Kit: Indicates when filters require cleaning.
-
After-Filter:99.97% extended life HEPA.
-
Small Footprint: Compact cabinet requires minimal floor space that eases machine installation.
-
Continuous Draining: Provides for longer filter life.
Options
-
Pre-Filters: 2 inch polyester pad.
-
Drain Loop Kit: Simplifies collection and reclamation on captured oil mist while providing drain line air seal.
-
Floor Stand: Available in 8 inch, and 26 inch heights. Eases unit and facility maintenance.
-
Inlet Plenum
Specifications
-
Construction: 18 ga. zinc coated welded steel, powder coated cabinet
-
Blower Pkg (HP): .75
-
Noise Level (dBA): 75
-
Electrical: .75 HP - 115/230/1/60, 9.8/4.9 amps, std.; .75 HP - 208-230/460/575/3/60, 2.7-2.6/1.3 amps, opt.
-
Nominal CFM: 500
Dimensions
-
Width: 18.00”
-
Height: 66.00”
-
Depth: 17.00”
