Mini-Pac

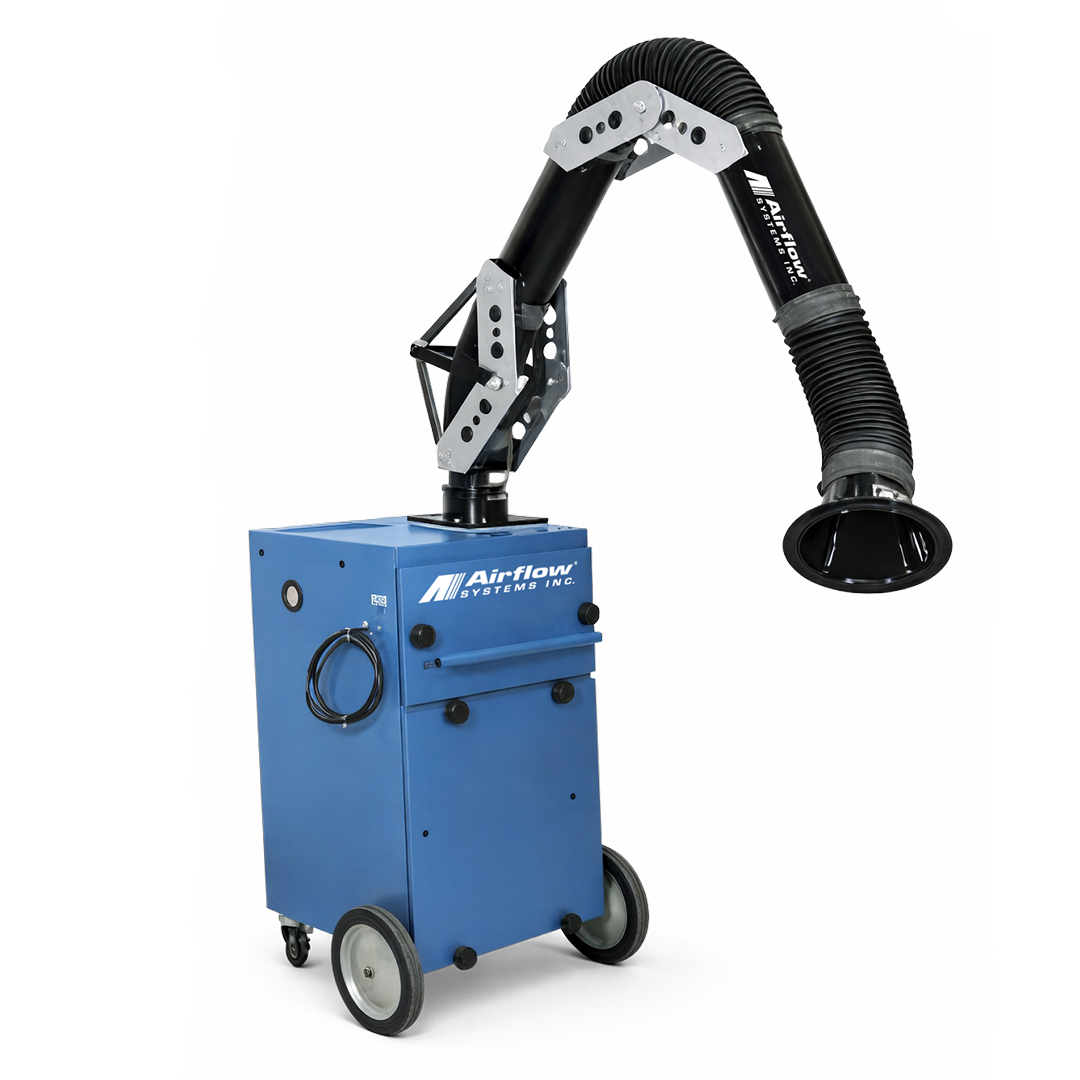

The Airflow Systems Mini-Pac is a complete, self-contained fume extraction unit designed for portable, high-efficiency source capture in tight workspaces. Its 7-ft. E-Z Arm® High Flow Extractor provides flexible positioning and reduced operator fatigue, while 95%+ filtration efficiency helps maintain cleaner air and supports OSHA compliance. A direct-drive blower delivers reliable high static pressure without belts or pulleys, and plug-in 115V operation makes it easy to use anywhere.
Features & Benefits
-
Complete, Self-contained Unit: Versatile, easy to use; no installation required.
-
7-ft. E-Z Arm® High Flow Extractor: Self-supporting external arm provides for maximum performance, reduces operator fatigue.
-
Efficient Source Capture: 95%+ filtration efficiency produces cleaner air; system simplifies OSHA and insurance compliance.
-
Direct-drive Blower: Higher static pressure, longer filter life and greater reliability; no belts or pulleys to replace.
-
Non-electrostatic Operation: High reliability, low maintenance.
-
Narrow Width Design: Permits access and maneuverability in tight spaces.
-
Plug-in Operation With Any 115V Outlet: Can be used anywhere, no special wiring required.
Options
-
Dual 4 Arms: Provides up to 300 CFM per arm.
-
HEPA Final Filters: 99.97% DOP efficiency.
-
Adsorption Filter: Refillable filter to control gases and odors; available with a variety of sorbents.
-
65-Watt Halogen Light Kit: Improves worker visibility.
-
Oversized Wheels: Provides additional stability, ideal for rolling over rough surfaces.
-
Hazard Location Electrical: Groups D, E, F, and G.
Specifications
-
Construction: 16 ga. steel cabinet, powder coated
-
Blower Pkgs (HP): .75, 1.0, 1.5
-
Noise Level (dBA): 66
-
Electrical: .75 HP - 115/1/60, 10 amps.; 1 HP - 115/1/60, 12 amps.; 1.5 HP – 115/1/60, 13.2amps
-
Nominal Air Flow (CFM): 550 CFM
Dimensions
-
Width: 24.00”
-
Height: 42.00”
-
Depth: 25.00”
