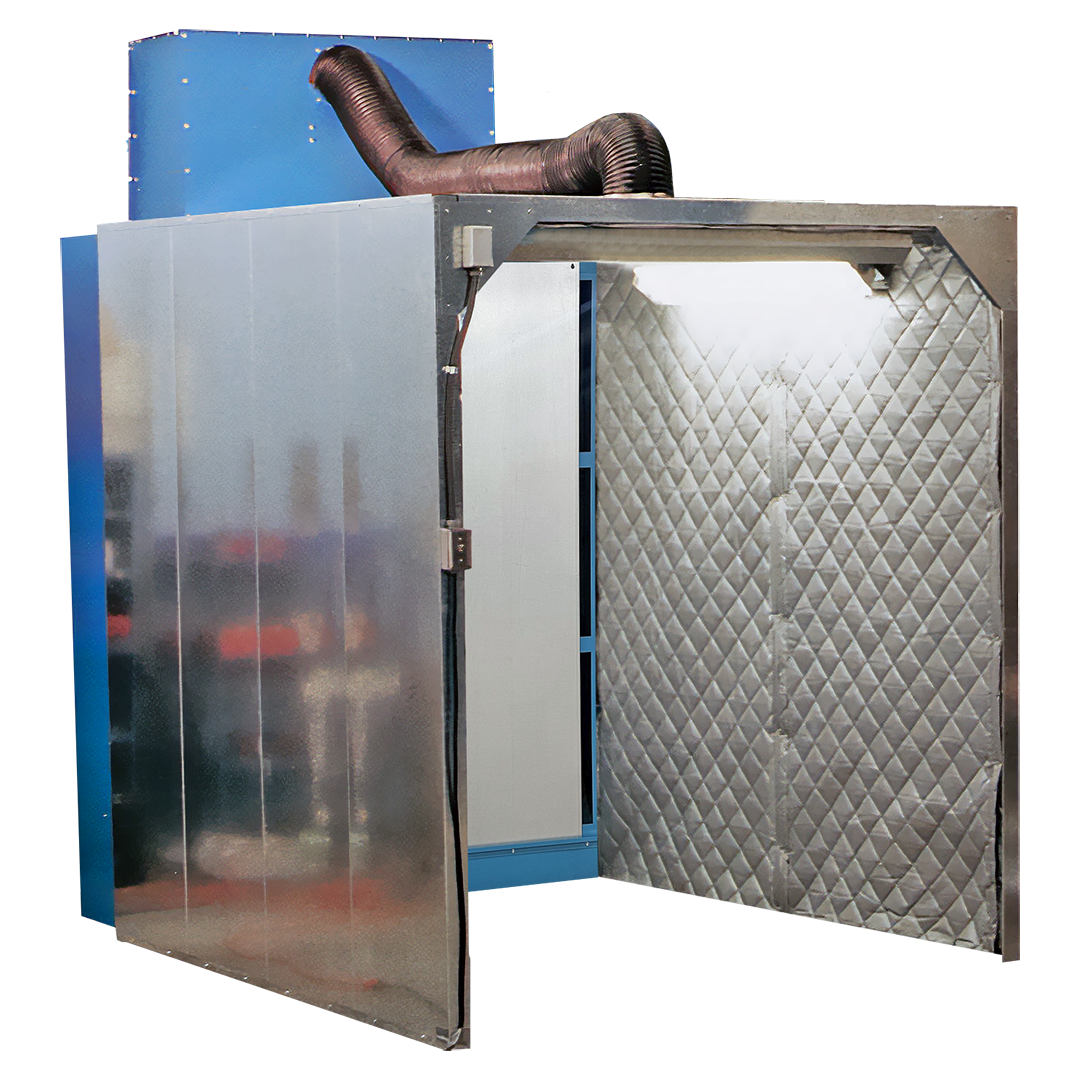

Panel Filter Booth
The Panel Filter PowerBooth is a cost-effective dust collection solution for moderate applications like buffing and polishing. It features a portable backdraft design with quick-change disposable MERV 11 filters and optional application-specific filtration. Panel Filter Booth systems create self-contained environments for grinding, sanding, brazing, and welding, capturing airborne contaminants before they spread throughout the facility. With up to 99.97% HEPA filtration, they deliver highly efficient air cleaning for safer, cleaner workspaces.
Features & Benefits
-
Modular, Expandable: Modules can be easily added as your dust
collection needs grow. -
Self-contained System: Eliminates costly ductwork and the need for
a separate dust collection system; units can be configured in multiple
arrangements depending on collection and filtration requirements. -
Full 8-ft. Working Height: Provides large, comfortable working
environment for optimum productivity. -
Double-Insulated Sound Panels: Prevents noise from disrupting
other plant operations, reduces worker fatigue. -
Dust-Resistant Light Fixtures: Provides optimum visibility,
encourages productivity. -
3 HP Direct-drive Blower: Improves collection efficiency,
increases reliability.
Options
-
Pressure Gauge Kit: Indicates when filters require cleaning.
-
Custom Filter Media: For specific applications.
-
Regain Air Design: Unique push/pull air flow pattern increases
collection efficiency.
Specifications
-
Construction: 16 ga. powder coated steel cabinet, double insulated
steel panels -
Blower Pkg (HP): 3.0 (per unit)
-
Noise Level (dBA): 77
-
Electrical: 3.0 HP – 208/230/460/3/60, 9.1-8.4/4.2 amps (per Panel Filter Power Booth)
-
Nominal Air Flow (CFM): PFB-1: 5,000, PFB-2: 10,000, PFB-3: 15,000,
PFB-4: 20,000, PFB-5: 25,000, PFB-6: 30,000 -
Weight (lbs.): Consult factory
Dimensions
-
Height: 8.00' std / 10ft. opt
-
Depth: 8.00' std / Increased depths , opt., Consult factory
-
Width: PFB-1: 6.00’, PFB-2: 8.00’, PFB-3: 12.00’, PFB-4: 16.00’, PFB-5:
20.00’, PFB-6: 24.00’ -
Consult factory for other available unit dimensions.
