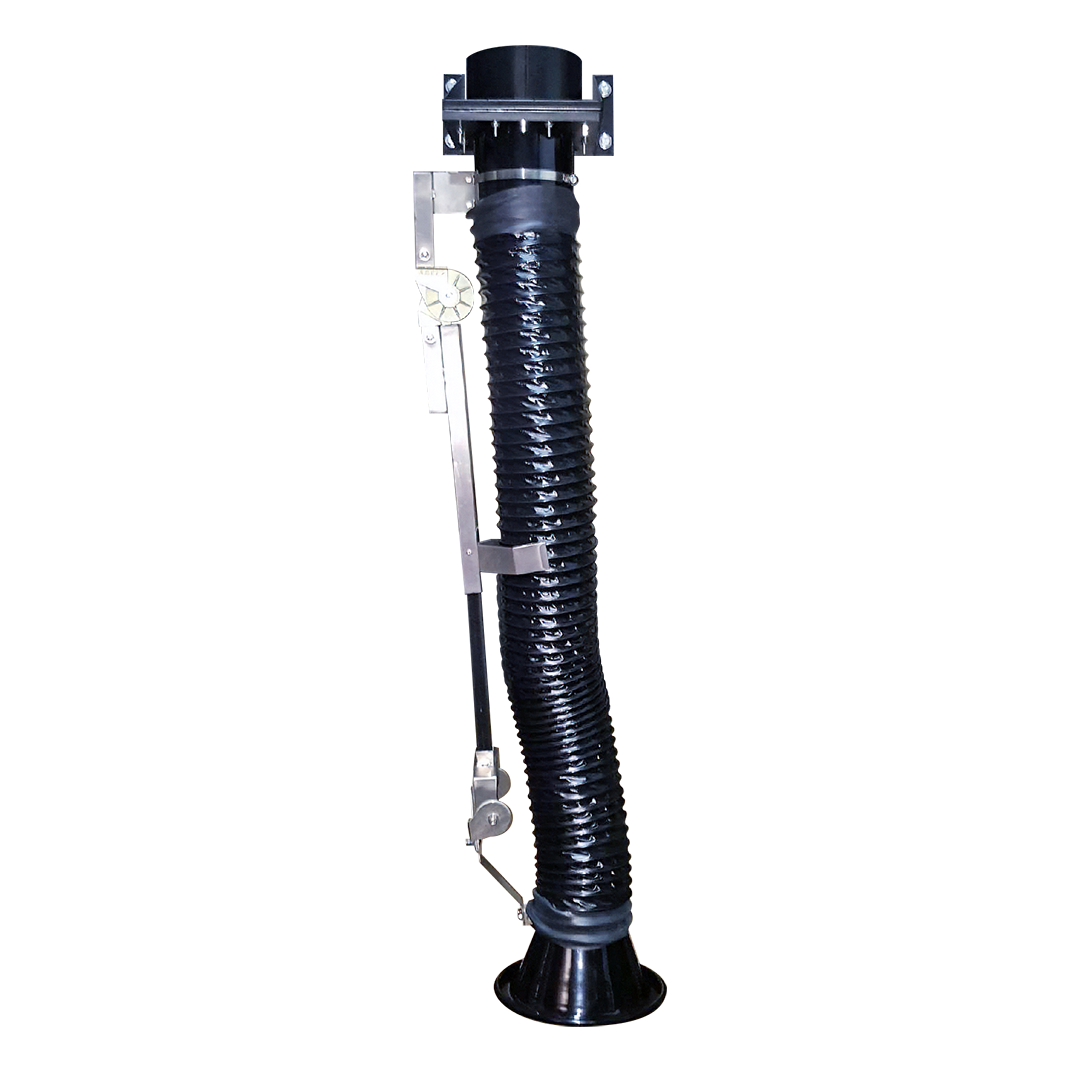

Telescoping Collection Arm

Features & Benefits

• Telescoping Adjustment: Add up to 40% more arm reach and collection area when arm is fully extended. Simplify storage or close-area collection when arm is retracted.

• 10-inch Diameter Inlet Hood with 360° Flange Handle: Large, aluminum capture hood optimizes collection efficiency. Full circumference handle eases user positioning of the arm.

• 360° Collection Area: Complete base joint rotation ensures efficient collection within a 360° area from the drop. Arm lift reaches 70° from the down position.

• Versatile Installation: Universal wall- or duct-mount bracket easily installs to existing filtration unit, boom arm, or ductwork.

Options

• Adjustable Air Flow Damper: Increases operating efficiency; regulate air flow levels and blower usage based on application-specific need.

• White Hose, Hood, and Mounting Bracket: UL-rated hose and coordinated components work to enhance facility cleanliness and appearance in non-corrosive environments.

• Static-free Hose: Reduce possible static shock of personnel and work pieces; speed maintenance, minimize particulate retention to the hose.

• Light Kit: 35 watt, 115 volt halogen light kit improves worker visibility.

• Intake Guard: Protect ducting and the blower unit from over-sized debris, such as rags and plastic sheeting that could hinder the efficient operation of the system.

• Exhaust Blower Units: Multiple blower units are available, from .75 HP up to 7.5 HP, depending on the application. Consult your representative for recommendations.

Specifications

• Construction: Aluminum tubes and steel components

• Arm Lengths: 3 ft. (4 ft. extended), 3.5 ft. (5 ft. extended), 4.5 ft. (7 ft. extended).

• Tube Diameters: 4" and 6"

• Blower Packages (HP): .75, 1.5, 3.0, 5.0, 7.5

• Nominal Air Flow: 450 to 850 CFM

• Weight: 4TS4 - 5 lbs., 4TS5 - 7 lbs., 4TS7 - 9 lbs., 6TS4 - 12 lbs., 6TS5 - 14 lbs., 6TS7 - 16 lbs.
