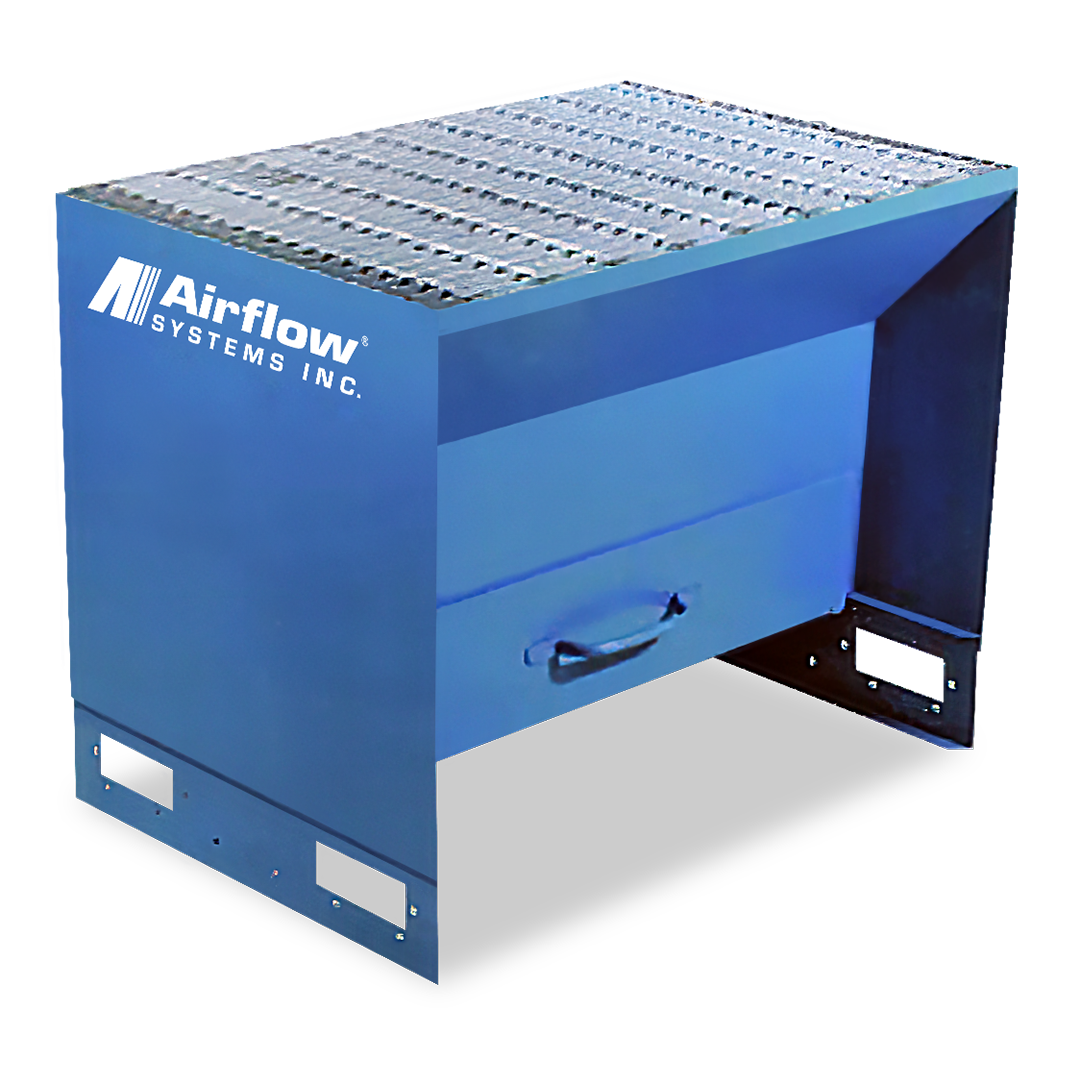

DT-23 Downdraft Table
The DT-23 is a rugged downdraft worktable that combines a built-in contaminant collection area with a spacious work surface to pull dust, smoke, and fumes downward away from the worker’s breathing zone without restricting movement. A 10-inch duct connection allows integration with a remote collection system when needed. Built from 14-gauge welded steel with a chemical- and oil-resistant finish, the DT-23 is designed to withstand demanding industrial environments, and built-in forklift slots make it easy to reposition. An external removable dust tray simplifies cleanup and maintenance.
Features & Benefits
-
Integral collection area and work surface: Draws contaminants away from workers’ breathing zone without hindering movement.
-
10-inch duct connection: For connection to remote collection operation.
-
14 ga. welded steel construction, finished with chemical and oil resistant paint: Durable, able to withstand industrial use.
-
Built-in forklift slots: For convenient movement.
-
Single external removable dust tray
Options
-
Exhaust Blower
-
Dust Collectors
-
Side Shields: Improves collection efficiency; reduces contaminant migration.
-
Enclosures and Lighting: Enhances work area; encourages productivity.
Specifications
-
Construction: 14 ga. welded steel, powder coated cabinet
-
Weight (lbs.): 180
Dimensions
-
Width: 37.00”
-
Height: 29.00”
-
Depth: 25.00”
