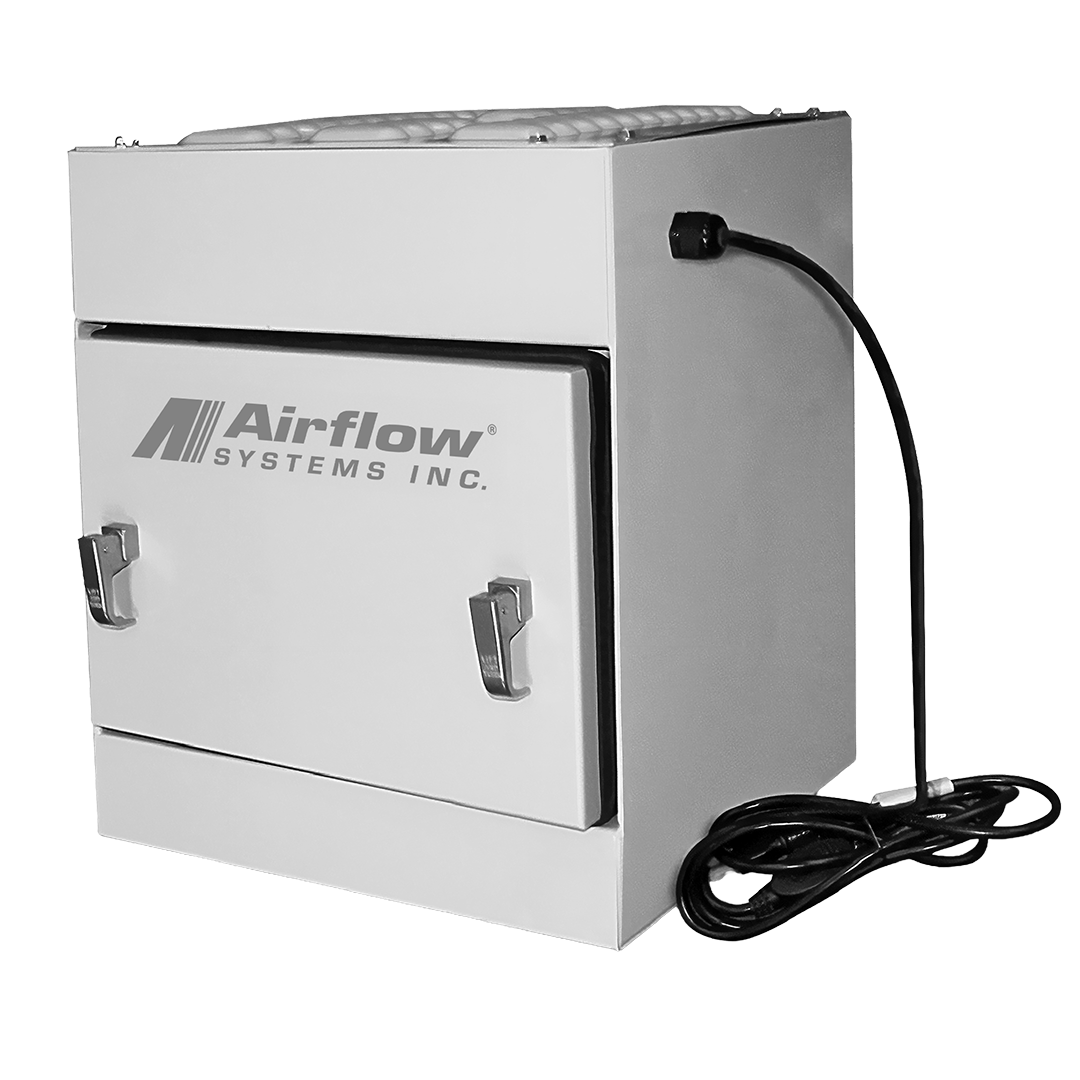

MistPak MPH1.5 Oil Mist Collector
The MPH1.5 oil mist collector is a compact, machine-top solution designed for efficient oil mist control in space-constrained machining environments. Featuring a MERV 14 main filter, sealed 18-gauge steel cabinet, and an energy-efficient backward-inclined blower, the MPH1.5 delivers reliable contaminant capture with excellent airflow and low power requirements. Its low-profile design, superior liquid drainage, and maintenance friendly filter access make it ideal for continuous operation directly above machine tools, even in low-ceiling applications.
Features & Benefits
-
MERV 14 Collection Efficiency: Designed specifically for oil mist, the MERV 14 rated main-filter provides a contaminant barrier.
-
Sealed Cabinet Construction: 18 gauge steel, seam-sealed cabinet eliminates contaminant escape common with stitch-welded or bolt-on panel designs.
-
Lever locking Filter Placement System: Ensures quick and accurate filter replacement; eliminates contaminant bypass of filters, reduces equipment and facility maintenance. Side access door speeds filter maintenance.
-
Low-profile Cabinet Design: Machine-top orientation enables installation directly above the machine tool-even in low ceiling applications; saves floor space.
-
Superior Liquid Drainage: 4-inch bottom inlet allows for 24-hour, 7-day operation with no need for manual handling of collected liquids.
-
Backward-Inclined Blower: Energy-efficient; superior air flow, low horsepower requirement, higher static pressure operation; acoustically-lined blower cabinet.
Options
-
Pressure Gauge Kit: Monitors air pressure at inlet for reduced static pressure; indicates need for filter cleaning, ensures optimum energy efficiency.
-
High-efficiency After Filters: Including: 99.97% HEPA, and MERV 14 rated, rigid-style, washable cartridge filters.
-
Ceiling-hung Mounting Kit: Easily suspend unit above machine tools where machine-top mounting is unavailable.
-
10-inch Lift Kit: Provides clearance for inlet ducting; simplifies access for maintenance operations.
Specifications
-
Construction: 18 gauge, welded steel cabinet; powder coated finish.
-
Blower Packages: Motorized, Backward-inclined impeller
