Mini-Vac

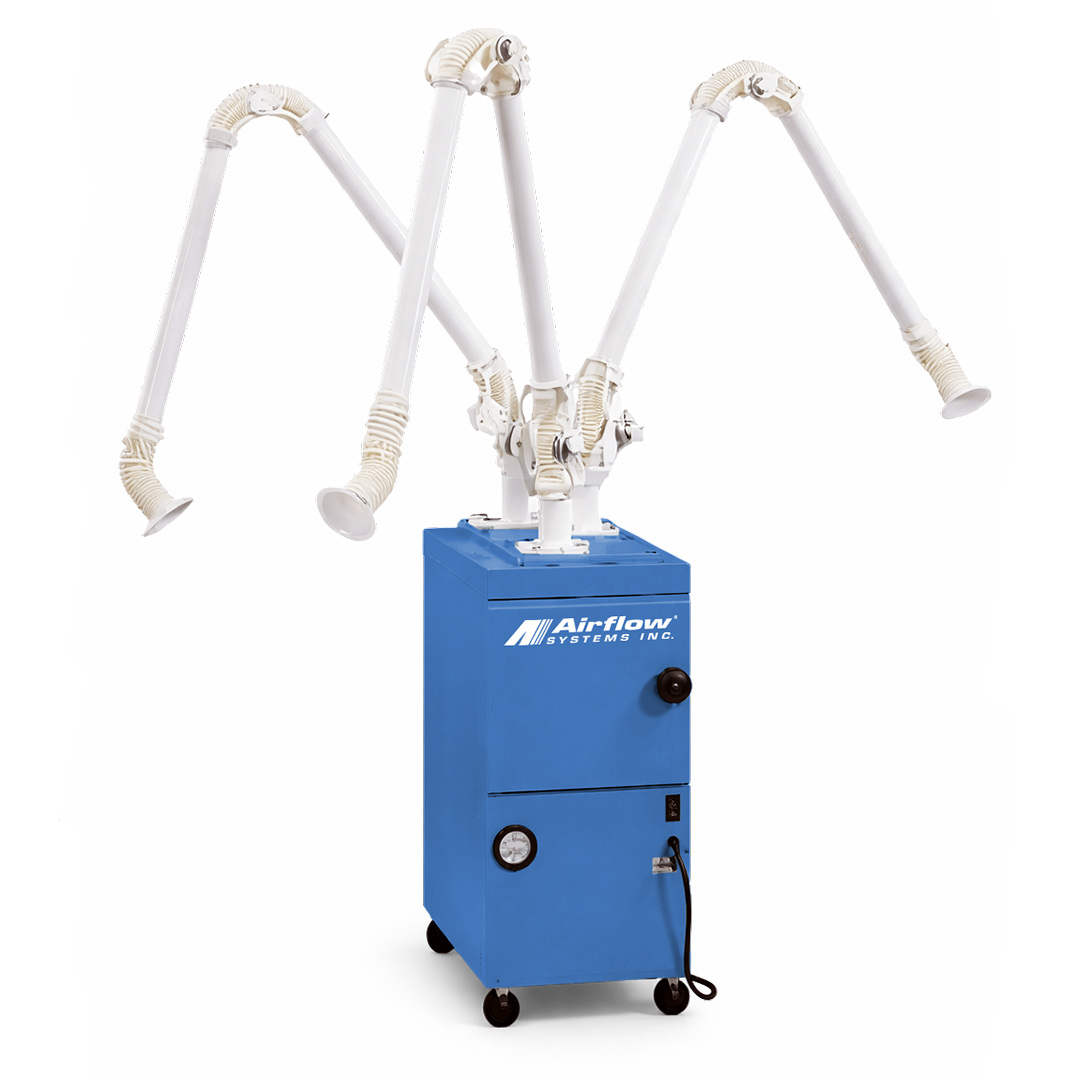

The Airflow Systems Mini-Vac™ portable source collection system is a self-contained unit designed for close work areas with heavy airborne contaminants in worker breathing zones. It combines an E-Z Arm® Extractor Arm, blower, and filters in one compact system, available in single-, dual-, or triple-arm configurations, with optional bench mounting for fixed stations. Its 4.75-inch flanged intake hood delivers focused, high-volume collection of smoke, dust, odors, and other contaminants while preserving worker visibility and reach.
Features & Benefits
-
Complete, self-contained unit: Versatile, easy to use; no installation required.
-
High efficiency 3-stage filtration: Provides up to 99.97% filtration efficiency.
-
Direct-drive blower: Higher static pressure, longer filter life and greater reliability; non-sparking; no belts or pulleys to replace.
-
Non-electrostatic operation: High reliability, low maintenance.
-
Narrow width design: Permits access and maneuverability in tight spaces.
-
Plug-in operation with any 115V outlet: Can be used anywhere, no special wiring required.
Options
-
Self-Supporting Arms: Dual 2.5-in. dia. arms provide up to 105 CFM per arm; Triple 2.5-in. dia. arms provide up to 80 CFM per arm.
-
6-Foot Self-Supporting Arms: Provides greater reach and 12-ft. collection area.
-
HEPA Final Filters: 99.97% DOP efficiency.
-
Adsorption Filter: Refillable filter to control gases and odors; available with a variety of sorbents.
Specifications
-
Construction: 16 ga. steel cabinet, powder coated
-
Blower Pkgs (HP): .50
-
Noise Level (dBA): 61
-
Electrical: .50 HP - 115V/1/60, 7.4 amps, std
-
Nominal CFM: 120 - 250
Dimensions
-
Width: 14.00”
-
Height: 28.00”
-
Depth: 21.00”
