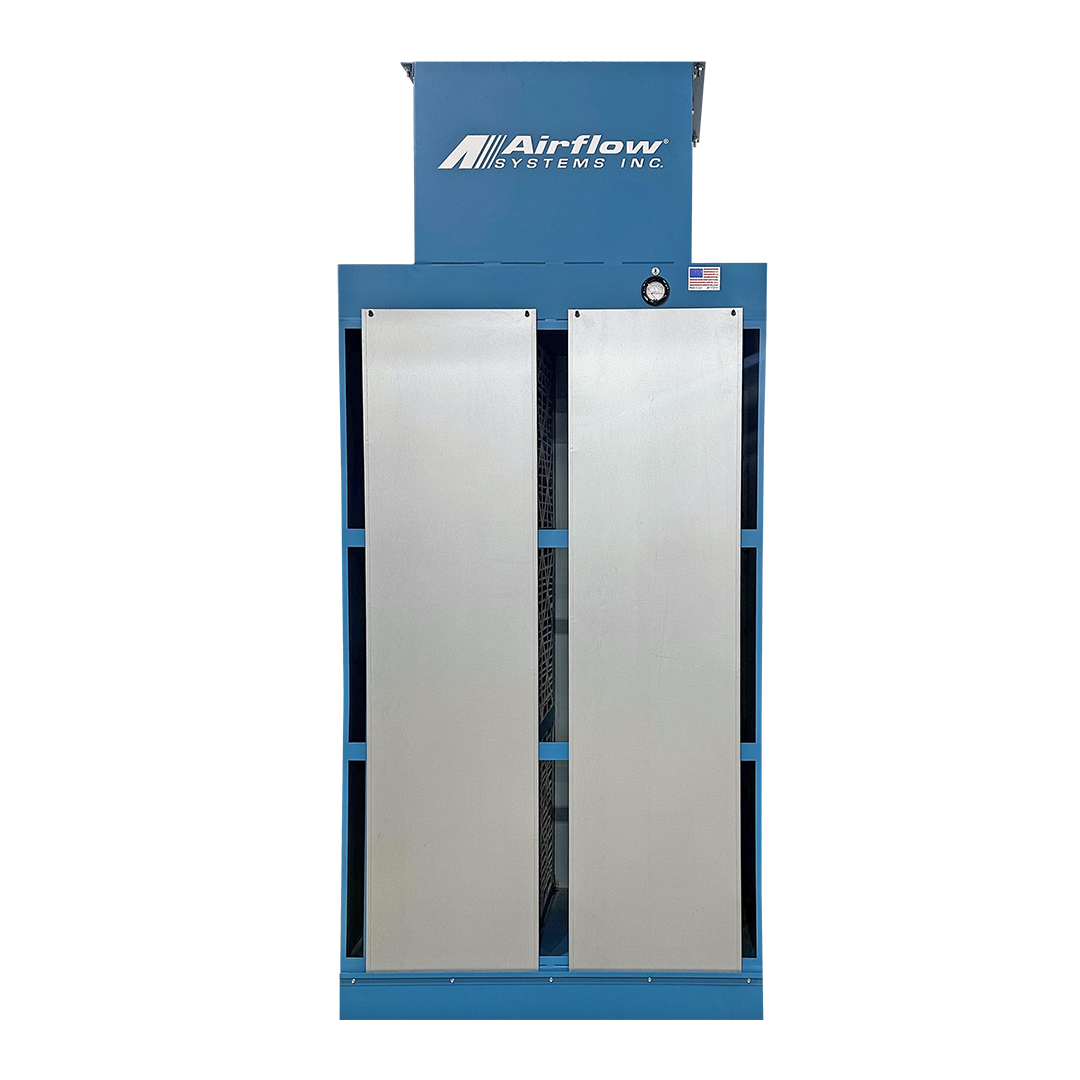

Panel Filter Power Booth
The panel filter dust collection booth is a cost-effective, easy-to-operate solution for controlling contaminants in moderate dust applications like buffing and polishing. It uses standard panel filters to contain and capture dust at the source while providing built-in lighting and sound insulation. Designed for processes such as grinding, sanding, brazing, and welding, the system creates a self-contained environment that protects worker breathing zones and prevents pollutants from spreading throughout the facility. With airflow capacities up to 30,000 CFM and filtration efficiency reaching 99.97% with HEPA after-filters, it delivers reliable, high-performance dust control.
Features & Benefits
-
Self-contained dust collection system: Eliminates costly ductwork and
the need for a separate dust collection system. -
3 HP direct-drive blower: Improves collection efficiency, increases
reliability. -
Maximum efficiency: High flow-to-horsepower ratio provides the optimal
energy efficiency. -
Wide filter selection: Many available filters, from single-stage MERV 11 to multi-stage HEPA
Options
-
Pressure Gauge Kit: Indicates when filters require replacement.
-
Filter Media: For specific applications.
-
12-in. Side Shields: Optimum depth for direct contaminant intake and
increased collection efficiency. -
Factory-Installed Casters: Provides portability, increases system
versatility. -
Casters: Improves maneuvability.
Specifications
-
Construction: 16 ga. steel cabinet, powder coated
-
Blower Pkg (HP): 3.0
-
Noise Level (dBA): 77
-
Electrical: 3.0 HP – 208/230/460/3/60, 7.3-7.2/3.6 amps
-
Electrical:
-
Nominal Airflow (cfm): 5000, std.
Dimensions
-
Width: 48.00"
-
Height: 108.00”
-
Depth: 24.00"
