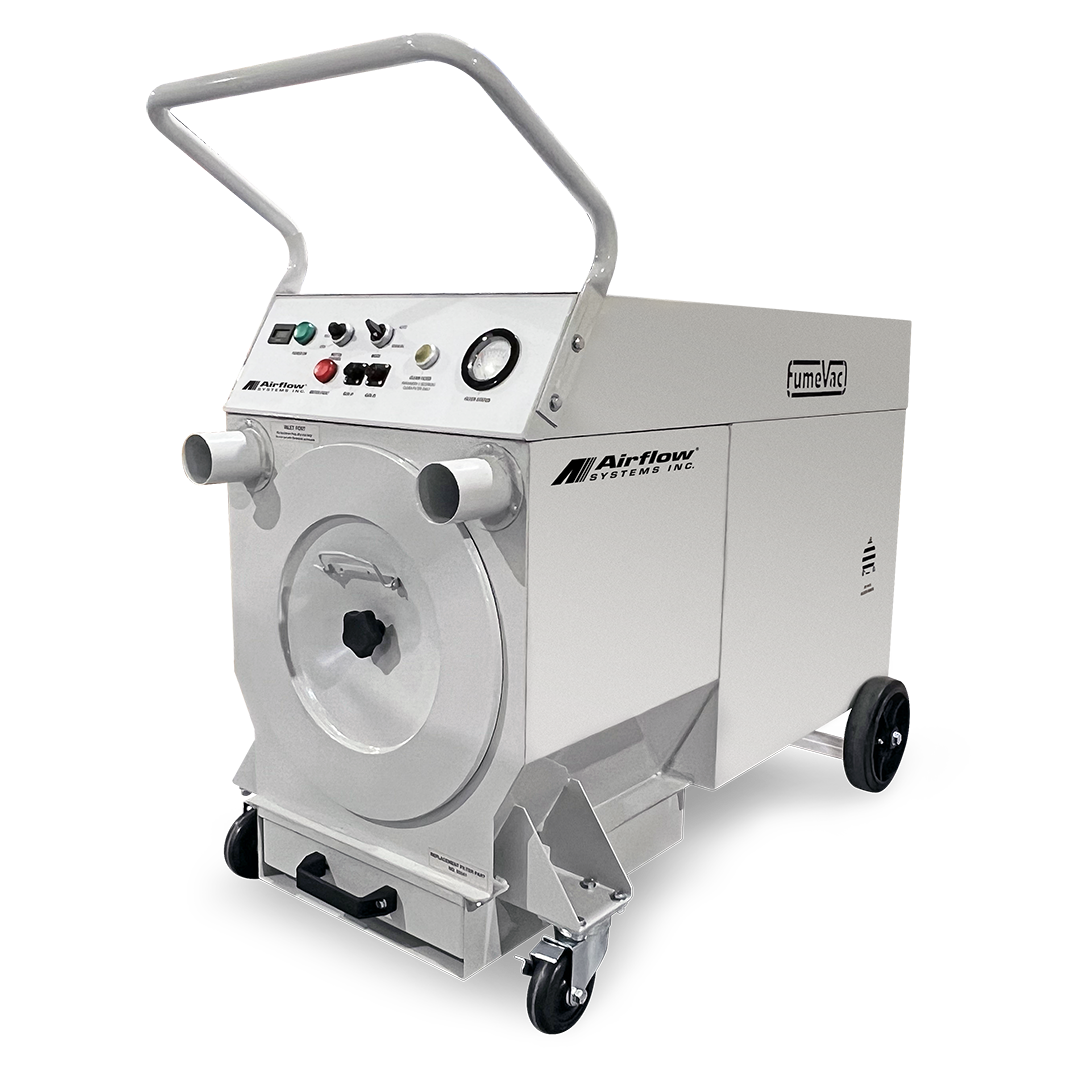

FVH-Series
A Portable, Continuous Duty Unit for Weld Fume Extraction Applications The FVH-1 and FVH-2 provide effective weld fume control— FVH-1 supports one ErgoMax™ MIG gun, while FVH-2 supports two. Built for continuous-duty welding, they outperform typical high-speed brush motor units. Both feature a manual vibration/air filter cleaning system for extended filter life. FVH stands out for its high vacuum power, portability, and remote on-demand control.
Features & Benefits
-
Continuous-duty Blower: Maintenance-free, high-performance brushless motors
-
Motor: 3-speed motor control for adjustable vacuum
- Max Vacuum: 180”w.g.
- Fume Extraction: Extracts fumes up to 115 cfm at the gun
- Usage: 1 or 2 guns, or automated welding
- Overload Protection: Thermal/electrical overload protection with indicator
- Maintenance: Hour meter for maintenance tracking
-
Non-electrostatic Operation: High reliability, low maintenance.
-
Over 99% Efficient Collection: Simplifies OSHA and insurance compliance.
-
Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
-
Easy Filter Backflush: Push-button operation eliminates cleanup hassle and reduces downtime.
Options
-
Pressure Gauge Kit: Indicates when filters require cleaning.
-
Silencers: Reduces air flow noise for quieter operation.
-
Adsorber Module: To control gases and odors.
-
HEPA High Efficiency After-Filter: Provides 99.97% filtration efficiency.
-
Heavy-Duty Wheels: Ideal for rolling over rough surfaces, provides additional stability.
- Regulator
Specifications
-
Construction: 12/14/16 ga. steel cabinet, powder coated
- Noise Level (dBA): 78
- Nominal Air Flow (CFM): FVH-1: 400 CFM; FVH-2: 800 CFM
Dimensions
-
Width: 24.5”
-
Height: 30”
-
Depth: 38”
