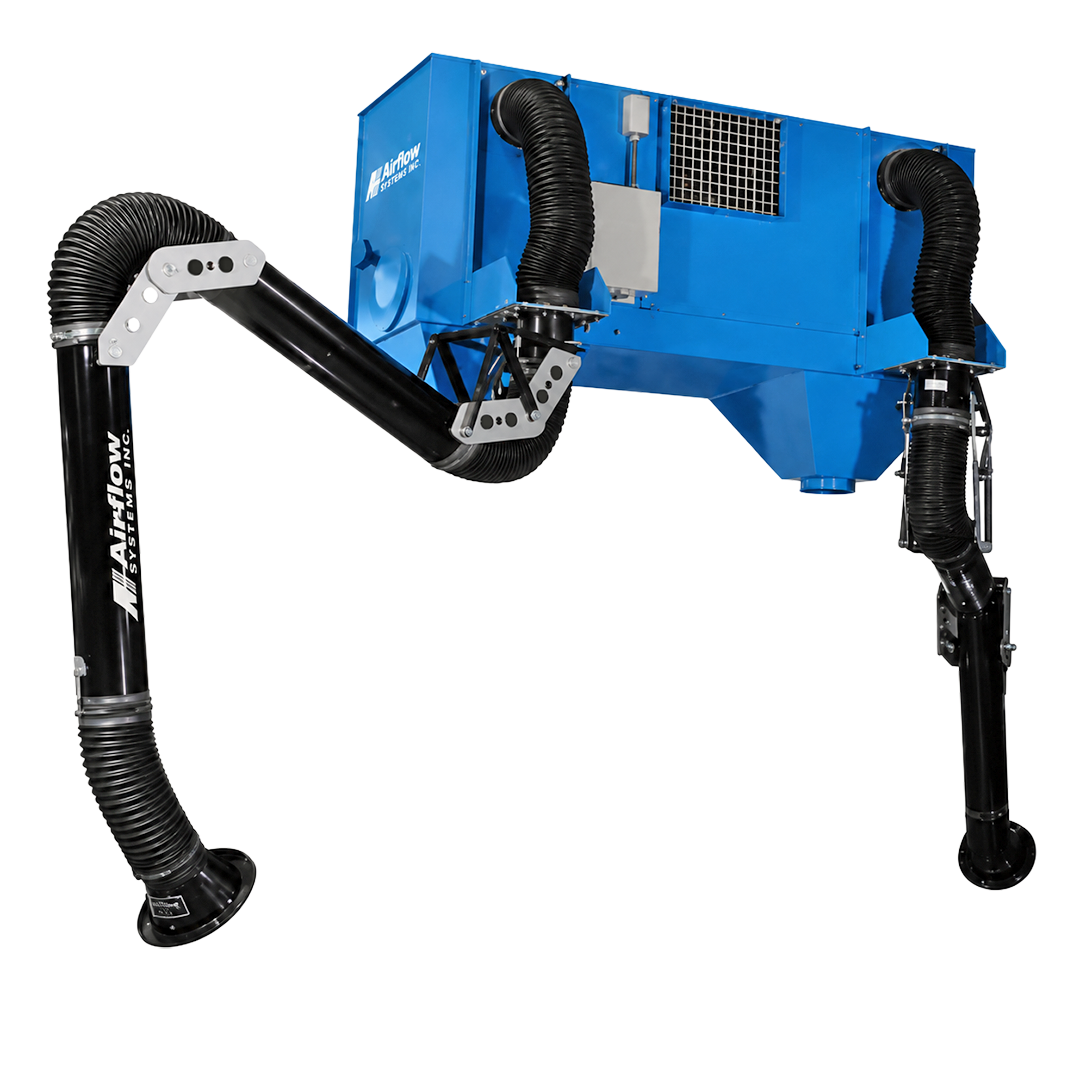

HC-4 Dual Arm Air Cleaner
The Airflow Systems HC-4 high-efficiency air cleaner with dual self-supported 10ft. long E-Z Arms® is capable of collecting dust, smoke, and other atmospheric pollutants at the source in industrial plants, shops, schools, and factories with high efficiency cartridge filters and is equipped with the Vibra-Pulse® automatic filter cleaning system The HC-4 will provide filter efficiency at noise levels as low as 82 dBa.
Features & Benefits
-
Dual 10-ft. E-Z Arm® High Flow Extractors: Increases collection efficiency over ambient systems.
-
Class II Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace.
-
Non-Electrostatic Operation: High reliability, low maintenance.
-
Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reversepulse systems.
-
Auto-Clean Off-line Filter Cleaning: Automatically cleans filters when unit is shut off.
Options
-
Pressure Gauge Kit: Indicates when filters require cleaning.
-
Silencer: Reduces noise up to 4 dBA.
-
Custom Cartridge Media: For specific applications.
-
14-ft. E-Z Arm® High Flow Extractors: Replaces standard 10-ft. E-Z Arm® Extractorsfor peak system performance.
-
(2) 8-in. Dia. Inlets: Simplifies ducted application installation (less dual arms.)
Specifications
-
Construction: 14 and 16 ga. steel cabinet, powder coated
-
Blower Pkg (HP): 3.0
-
Noise Level (dBA): 82/78 silencer
-
Electrical: 3.0 HP - 208-230/460/3/60, 9.2-8.0/4/3 amps, std
-
Nominal Air Flow (CFM): 2000
Dimensions
-
Length: 77.00”
-
Height: 45.50” (with Hoppers)
-
Depth: 28.00”
