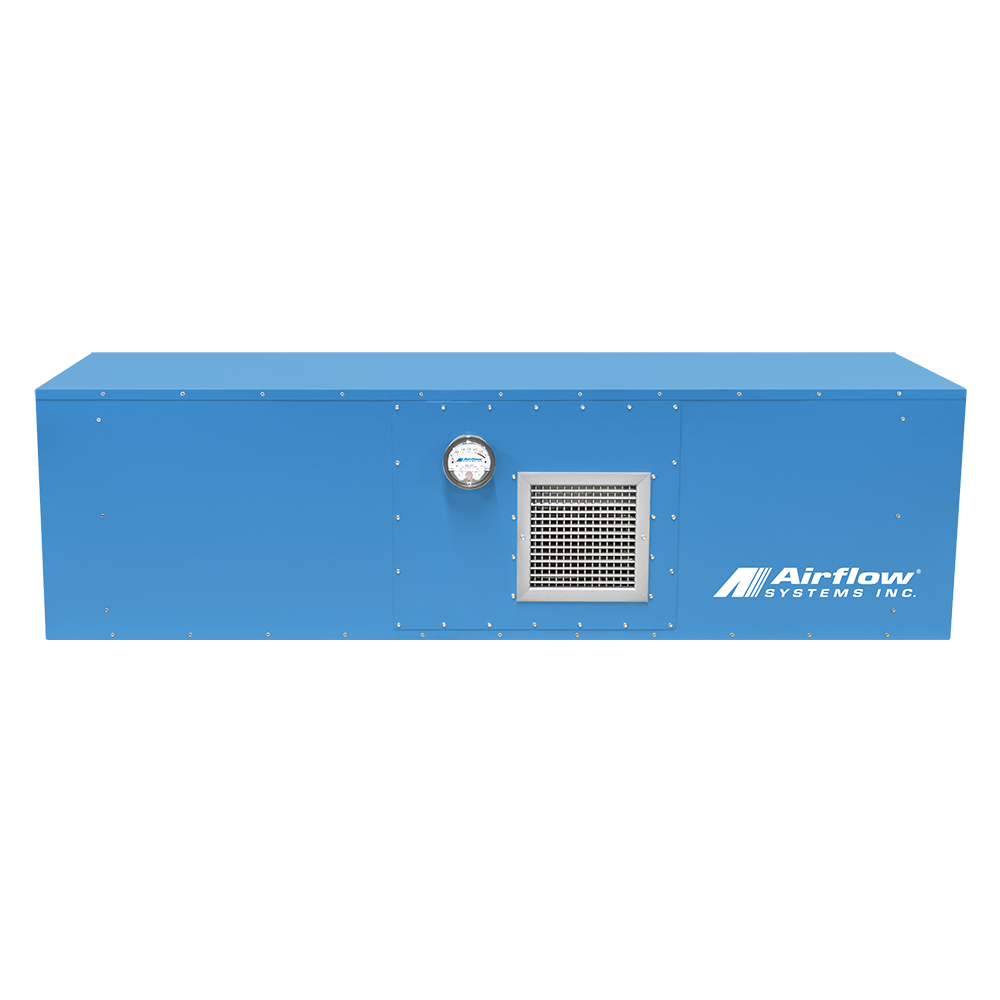

G-Series
The Airflow Systems G-Series is a plug and play ambient air cleaner designed to filter the air of fine, airborne dust, and contaminants to provide higher quality air, protecting the health of your employees and your environment. The G-Series is the most efficient ambient air cleaner in its class saving you money by lowering energy consumption and maintenance costs. With no need for ducting, this compact, versatile system can be hung from the ceiling or mounted to the wall and requires no floorspace.
Features & Benefits
-
Capacities to 4000 CFM: Handles toughest industrial applications.
-
Belt Drive Blower: Standard
-
Non-electrostatic Operation: High reliability, low maintenance.
-
Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
-
High Efficiency Filter Media: provides maximum effectiveness; low air-to-cloth ratio extends cycles between filter changes; filter changes easily without tools.
-
Prewired to Junction Box: For fast, easy installation.
Options
-
Pressure Gauge Kit: Indicates when filters require cleaning. (Optional)
-
Silencer: Reduces air flow noise for quieter operation. (Optional)
-
Backwards Inclined Blower: For operating at higher pressures.
-
Inlet Plenum
Specifications
-
Construction: 16 ga. steel cabinet, powder coated and galvanized steel options;
-
Blower Pkg (HP): .75, std.; 3.0, opt.
-
Noise Level (dBA): 75 std./3 HP = 79
-
Electrical: .75 HP - 120, 3.0 HP - 208/230/460
-
Nominal Air Flow (CFM): 3000 std.; 4000 opt.
Dimensions
-
Width: 24”
-
Height: 24”
-
Length: 85”
