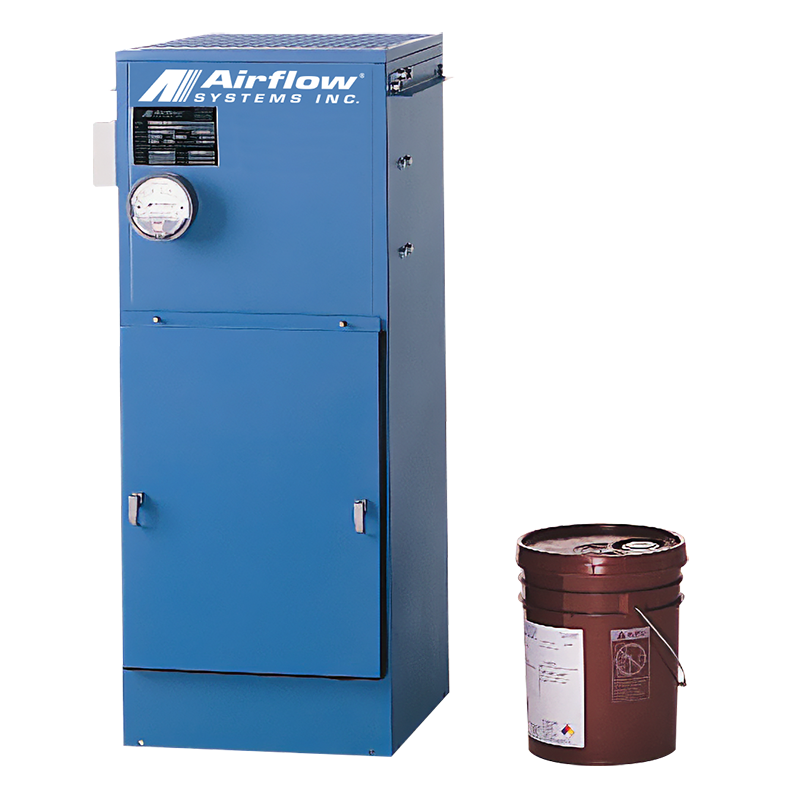

MistPak MP14 Mist Collector
The MP14 mist collector is designed for medium-duty metalworking applications. It produces 1000 to 1400 CFM with 95% filtration efficiency for single or multiple machine tool collection systems. The MP14 features a 2” aluminum mesh prefilter and (3) Mist-Plus® main filters for effective mist collection and extended filter life. It also includes a bottom inlet that allows for a shorter cabinet design and can be mounted directly on top of a machine tool. Its compact 2.9 square foot footprint requires minimal floor space and simplifies installation.
Features & Benefits
-
Exclusive MistPlus® Containment Management System: Delivers over 95% filtration efficiency; reduces operating costs by extending maintenance cycles and filter life.
-
Baked-on Powder Coat Finish: Resists harsh industrial environments.
-
Front Access Filter Door: Eases filter access; reduces filter maintenance and changeout time.
-
Sloped Drain Pan. Facilitates reclamation of captured oil mist.
-
Lever locking Filter Mounting: Eliminates contaminant bypass of filters.
-
Small Footprint: Compact cabinet requires minimal floor space; eases machine and wall mounting.
-
Continuous Draining: Provides for longer filter life.
Options
-
Pressure Gauge Kit: Indicates when filters require cleaning.
-
Pre-Filters: 2-in. polyester pad.
-
After-Filters: 99.97% HEPA, 95% DOP and odor modules.
-
Drain Loop Kit: Simplifies collection and reclamation on captured oil mist while providing drain line air seal.
-
8" and 24" Floor Stands: Stabilizes floor-mounted units; eases unit and facility maintenance.
-
Source Capture Plenum: Add high-efficiency source-point collection or ducting; plenum attachment simplifies connectivity of ducts or collection arms.
Specifications
-
Construction: 18 ga. zinc coated welded steel, powder coated cabinet
-
Blower Pkgs (HP): 1.5
-
Noise Level (dBA): 75
-
Electrical: 1.5 HP - 115/230/1/60, 13.2/6.6 amps, std.; 1.5 HP - 208/230/460/3/60, 4.9-4.6/2.3 amps, opt.
-
Nominal Air Flow (CFM): 1350
Dimensions
-
Width: 18.00”
-
Height: 47.00”
-
Depth: 22.00”
