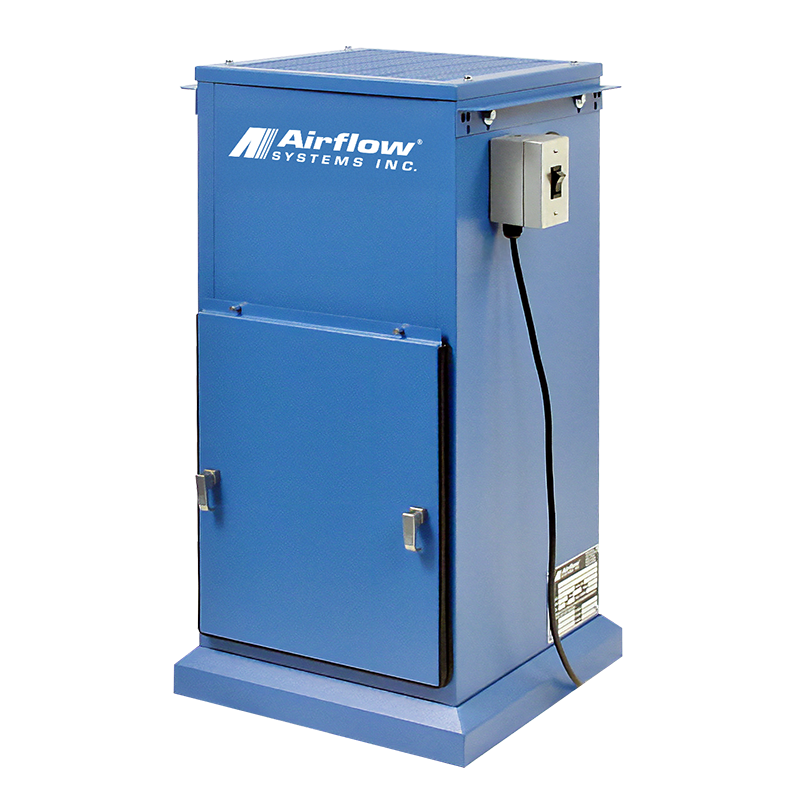

MistPak MP4 Oil Mist Collector
The MP4 Industrial Mist Collector delivers powerful, efficient mist collection in a compact, durable design. Featuring an aluminum mesh pre-filter and main filter using the Mist-Plus® Containment Management System for over 95% filtration efficiency, a welded steel cabinet, and easy front filter access, the MP4 ensures cleaner air, reduced maintenance, and longer filter life. Built to perform in demanding environments, this space-saving unit provides reliable, continuous operation to keep your facility cleaner, safer, and more productive.
Features & Benefits
-
Exclusive MistPlus® Containment Management System: Delivers over 95% filtration efficiency; reduces operating costs by extending maintenance cycles and filter life.
- Welded Steel Cabinet: Eliminates contaminant escape common with bolt-on panel cabinets.
- Baked-on powder coat finish: Resists harsh industrial environments.
-
Front Access Filter Door: Eases filter access; reduces filter maintenance and changeout time.
-
Ultra-Seal® Filter Mounting: Eliminates contaiminants bypass of filters.
-
Small Footprint: Compact cabinet requires minimal floor space; eases machine and wall mounting.
-
Continuous Draining: Provides for longer filter life.
Options
-
Pressure Gauge Kit: Indicates when filters require cleaning.
-
Pre-Filters: 1-in. polyester pad.
-
After-Filters: 99.97% HEPA, 95% DOP and odor modules.
-
Drain Loop Kit: Simplifies collection and reclamation on captured oil mist while providing drain line air seal.
-
5" Floor Stand: Stabilizes floor-mounted units; eases unit and facility maintenance.
Specifications
-
Construction: 18 ga. zinc coated welded steel, powder coated cabinet
-
Blower Pkgs (HP): .75
-
Noise Level (dBA): 73
-
Electrical: .75 HP - 110/220/1/60, 9.8/4.9 amps, std.; .75 HP - 208/230/460/3/60, 2.7-2.6/1.3 amps, opt.
-
Nominal Air Flow (CFM): 450
- Weight (lbs): 105
Dimensions
-
Width: 19.00”
-
Height: 35.00”
-
Depth: 16.00”
