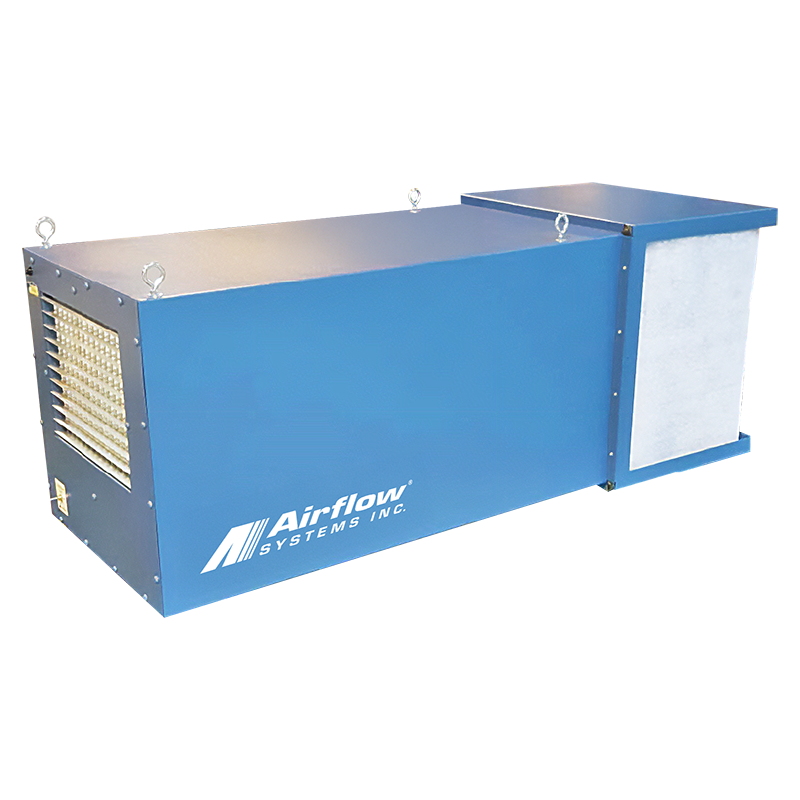

F70R Smoke & Odor Air Cleaner
The F70-R air filter collects dust, smoke, and other airborne pollutants in factories, schools, shops, labs, assembly areas and repair shops with a high efficiency, 2-stage filtration system proven in over 10 years of application. The F70-R is a complete, packaged air filter unit designed as a “free hanging” system for efficient and economical air cleaning when at-the-source capture of pollutants is not possible or practical. Strategic placement of one or several F70-R units in an area will result in dramatic reduction of the bothersome smoke, dust or haze in your facility.
Features & Benefits
-
Capacities to 2500 CFM: Handles toughest industrial applications.
-
Direct-drive Blower: Long filter life and greater reliability; no belts or pulleys to replace.
-
Non-electrostatic Operation: High reliability, low maintenance.
-
Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
-
High Efficiency Filter Media: provides maximum effectiveness; low air-to-cloth ratio extends cycles between filter changes; filter changes easily without tools.
-
Prewired: 2 speed switch and cord. (std. motor)
ON-OFF toggle switch (opt. motors)
Options
-
Pressure Gauge Kit: Indicates when filters require cleaning.
-
Silencer: Reduces air flow noise for quieter operation.
-
Choice of Filter Options.
Specifications
-
Construction: 18 ga. steel cabinet, powder coated
-
Blower Pkg (HP): .75 (2-speed)
-
Noise Level (dBA): 68/62 silencer
-
Electrical: .75 HP, 115/1/60, 9.4 amps, 2-speed, std.; opt. 75 HP, 460/1/60, 2.5 amps, single speed; opt. .75 HP, 208-230/1/60, 3.9 amps, single speed.
-
Nominal Air Flow (CFM): 2500
Dimensions
-
Width: 26.00”
-
Height: 25.50”
-
Length: 66.00”
